Removable Stadium Structure Tent

Removable Sports Stadium Structures

Sobre o projeto

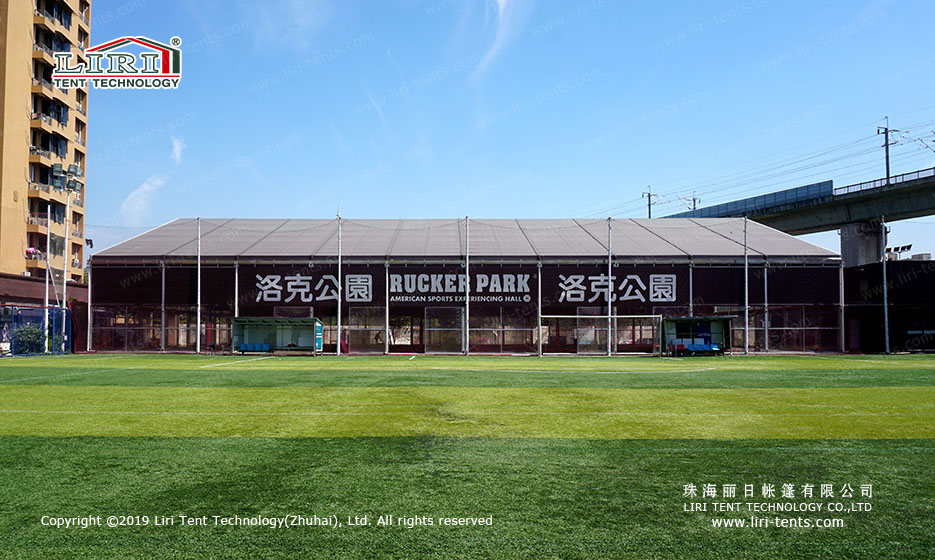

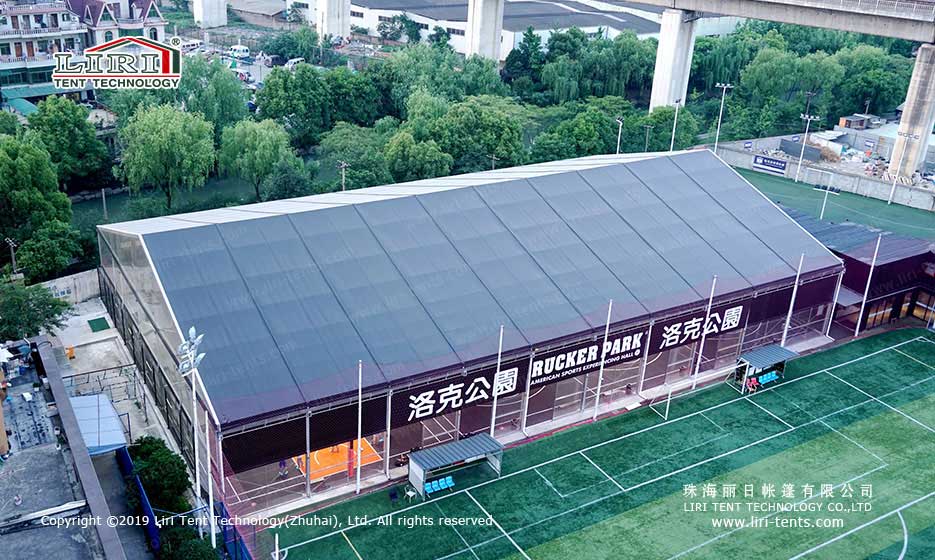

Compared with traditional architecture, Liri Tent offers the removable stadium structure tent which can be flexibly assembled and removed according to the usage requirements, also named as modeling sports tent. Its modular design helps quickly moving, increase or decrease the scale of the venue and can be used for rental business if the sports game time is not last long. Liri sports tents do not use reinforced concrete, we have no dust during construction. You can also set it directly on the original outdoor basketball courts, soccer fields, and other venues. Even no need to remodel the original files. It is consistent with the sustainable development concept.

At present, the stadiums in China are existing under embarrassing situations of in the lacking of quantity and long-term leaving unused. It cost too much time and money to build up all these concrete stadiums but often left it for a long time without usage. It makes these stadiums out of the real demand for the people.

Flexibly install and remove the removable stadium structure tent

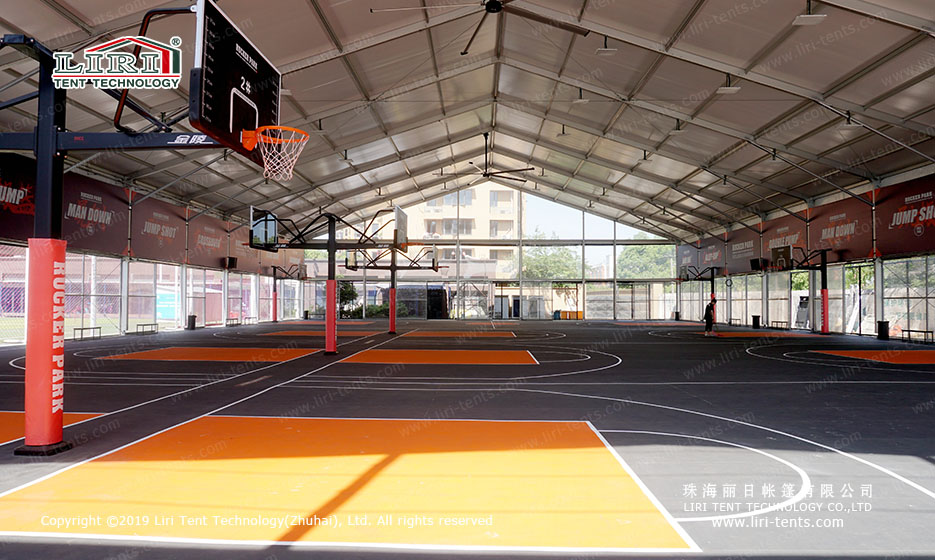

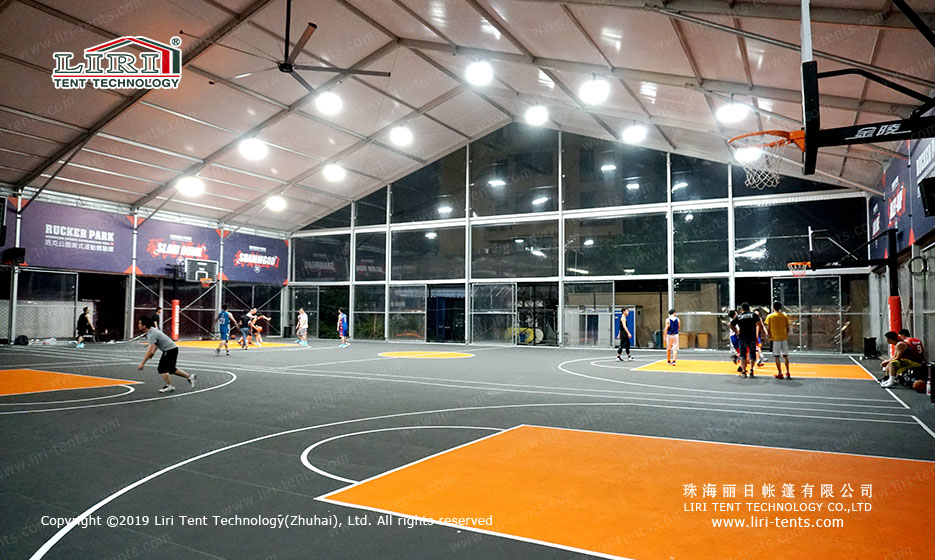

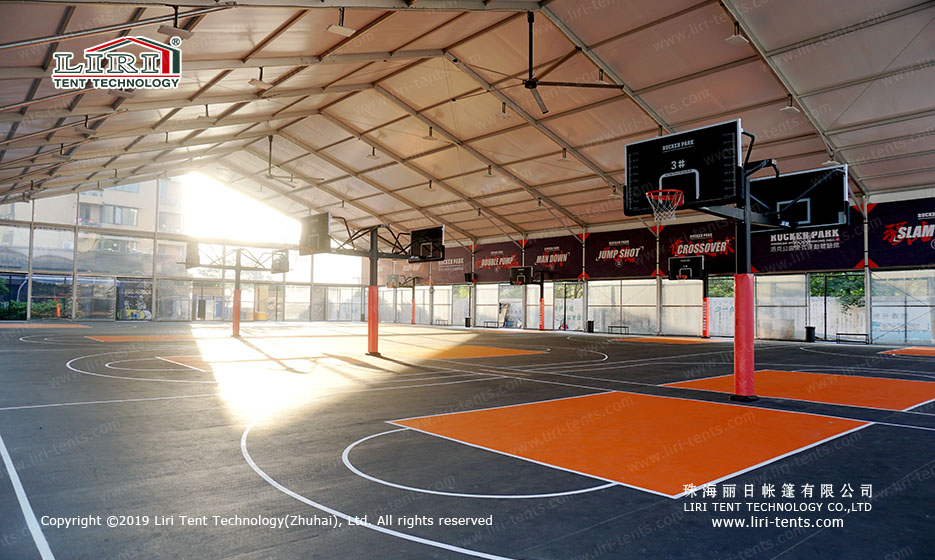

It solves the current problems of building up a concrete stadium. It applies to basketball, soccer, tennis, swimming, skating, and many other sports. You can customize it according to the actual size and requirements of the venue.

Liri sports tent are sun-proof, wind-resistant, rain-proof, rust-proof, fire retardant and so on. It can offer much better protection for the athletes than the open sports fields. Also, it can be installed on the dedicated floor, ventilation window, ventilation pipe, lighting system and many other facilities to create a full-featured mobile professional sports fields.

Especificações da série de tendas para eventos desportivos
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
30 m4 m8,9 m5 m350 x 120 x 5 mm (4 canais)
40 m4 m10,5 m5 m350 x 120 x 5 mm (4 canais)
45 m4 m11,38 m5 m350 x 120 x 5 mm (4 canais)
50 m4 m12 m5 m350 x 120 x 5 mm (4 canais)
60 m4 m13,6 m5 m350 x 120 x 5 mm (4 canais)
Características

Vigas do quadro: alumínio extrudido prensado a alta pressão 6061/T6 (15HW).

Revestimento em tecido: tecido de poliéster de alta qualidade com revestimento duplo em PVC; impermeável 100%; ignífugo de acordo com as normas DIN4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem coluna no interior, espaço interior disponível 100%.
