Tenda para desportos motorizados

Sobre o projeto

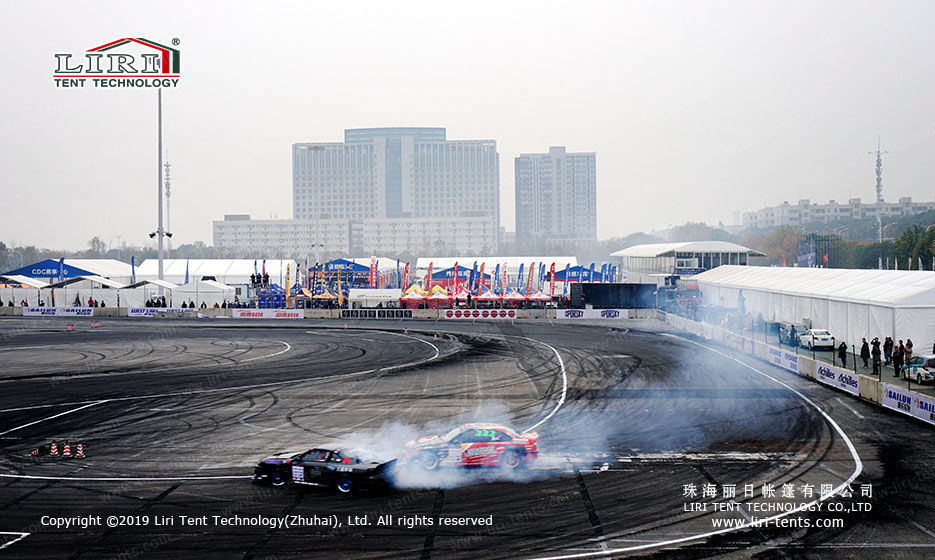

The motorsports competition has ushered the last finals day competition. This is a large professional league. In addition to bringing the outstanding domestic and foreign professional drivers together, let us also look at what kind of mobile space the Liri tent provided for the fast and furious competition.

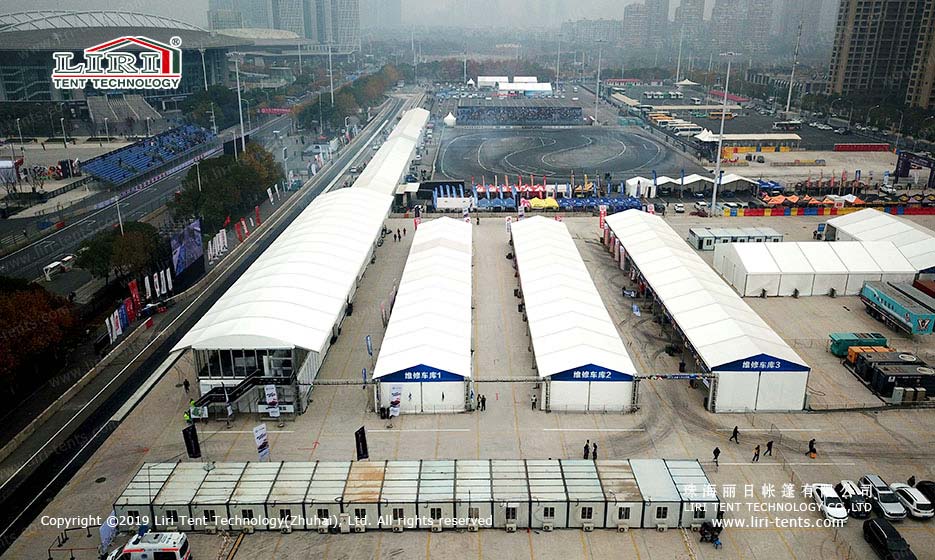

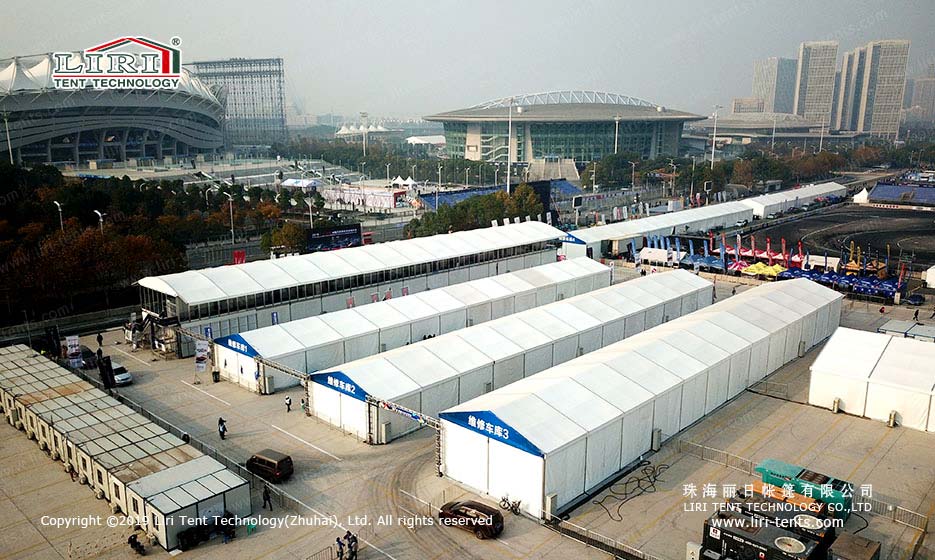

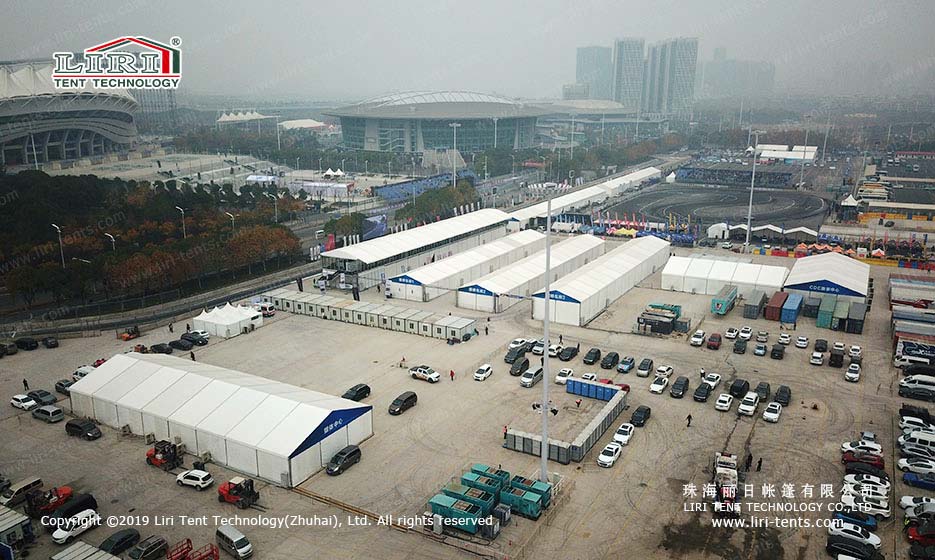

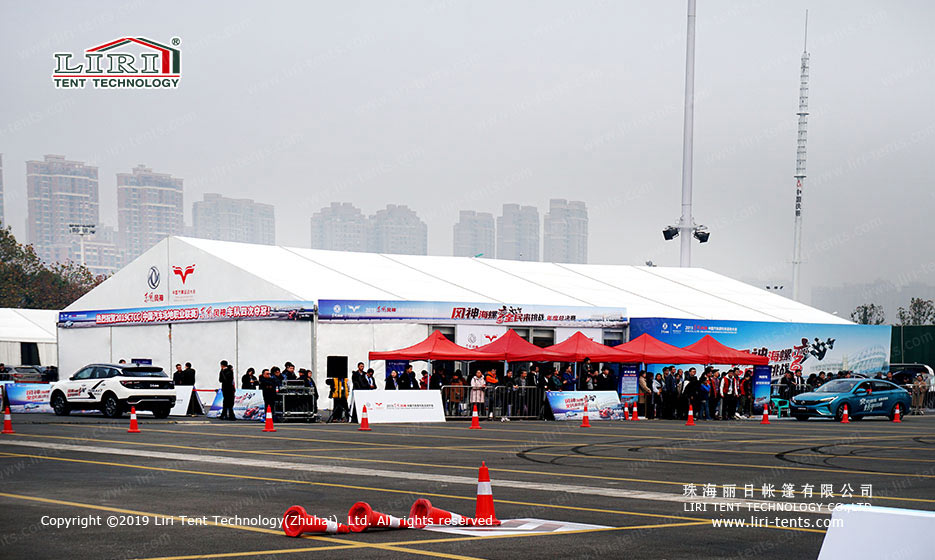

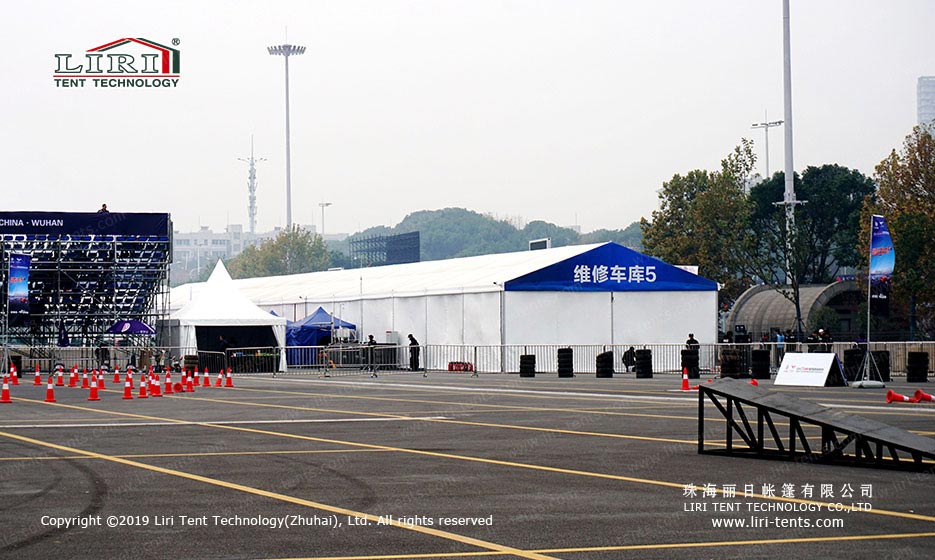

It takes too much manpower to hold on an event, so we provide the event with a lot of motor sports tent used for the command center, media center, volunteer center, public security command center, maintenance garage, and some audience interaction areas. The reasonable division of regional space effectively controlled the order of the game on the court, provided a strong security guarantee for this event, and provided great convenience to the audience.

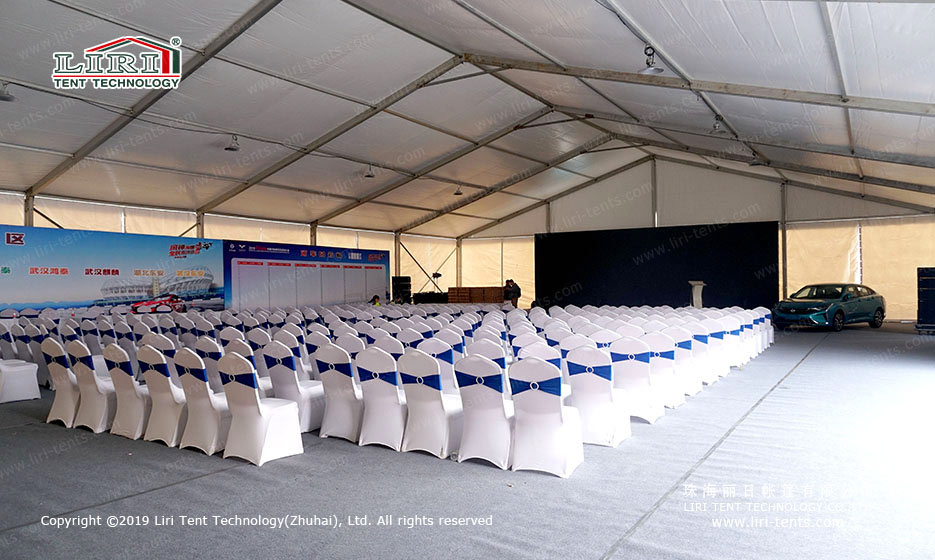

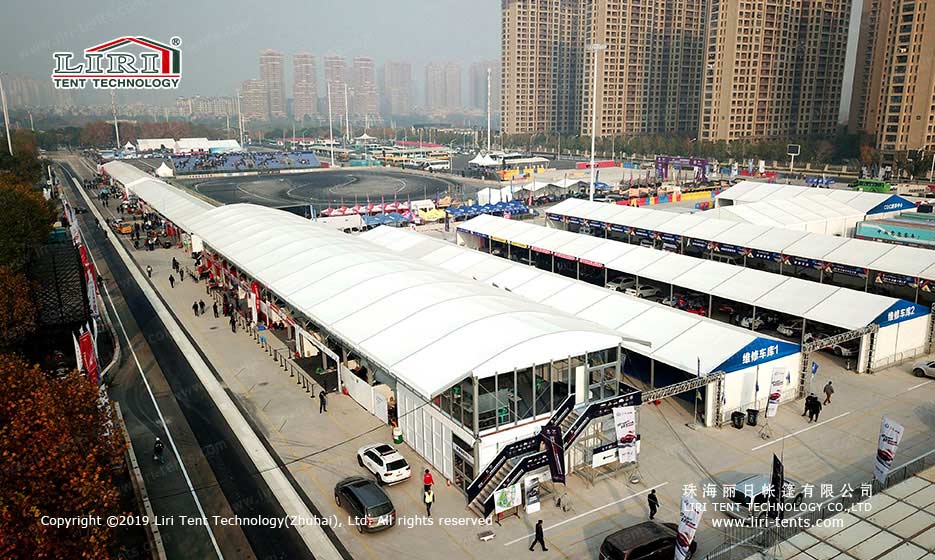

Double decker tent for VIP lounge

The tenda de dois andares for VIP Lounge space is relatively more flexible and advanced. The first floor is semi-open and is mainly used for car maintenance of major participating teams. It can also be used to get close contact with drivers and post-race celebrations; the second floor is VIP box, each motor sports tent box has TV and sofa, privacy and comfort are very good, as well as buffet drinks, full transparent glass wall to make the audience more clearly face the speeding track, but also can take a break while watching live TV to watch the progress of the game in all directions.

Especificações da série de tendas para eventos desportivos
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
10 m3,88 m5,53 m5 m204 x 110 x 4 mm (4 canais)
12 m3,88 m5,83 m5 m204 x 110 x 4 mm (4 canais)
15 m3,88 m6,3 m5 m204 x 110 x 4 mm (4 canais)
20 m3,88 m7,1 m5 m204 x 110 x 4 mm (4 canais)
21 m3,88 m7,25 m5 m204 x 110 x 4 mm (4 canais)
25 m3,88 m7,88 m5 m204 x 110 x 4 mm (4 canais)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento de PVC; impermeável 100%; ignífugo de acordo com as normas DIN4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
