Tenda de três andares
- Informações gerais

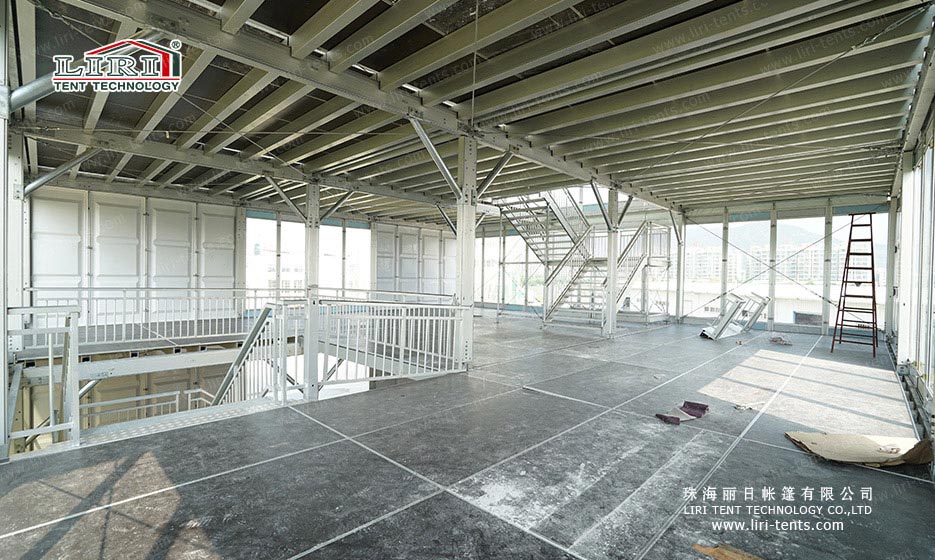

Multi-level Tent Structures

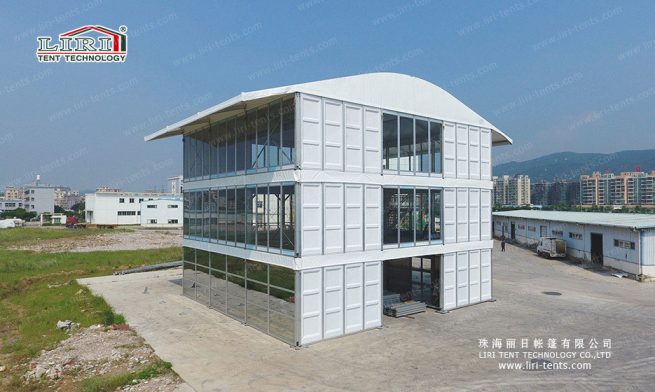

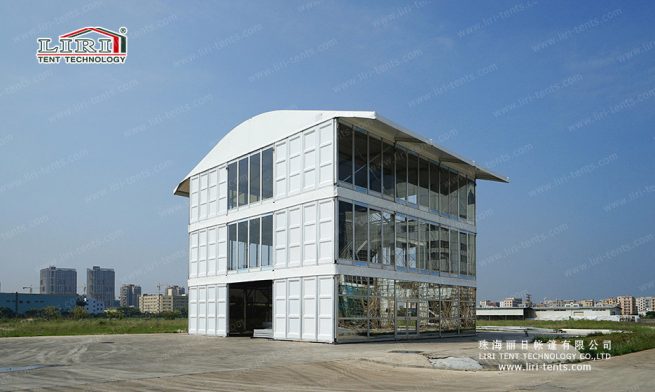

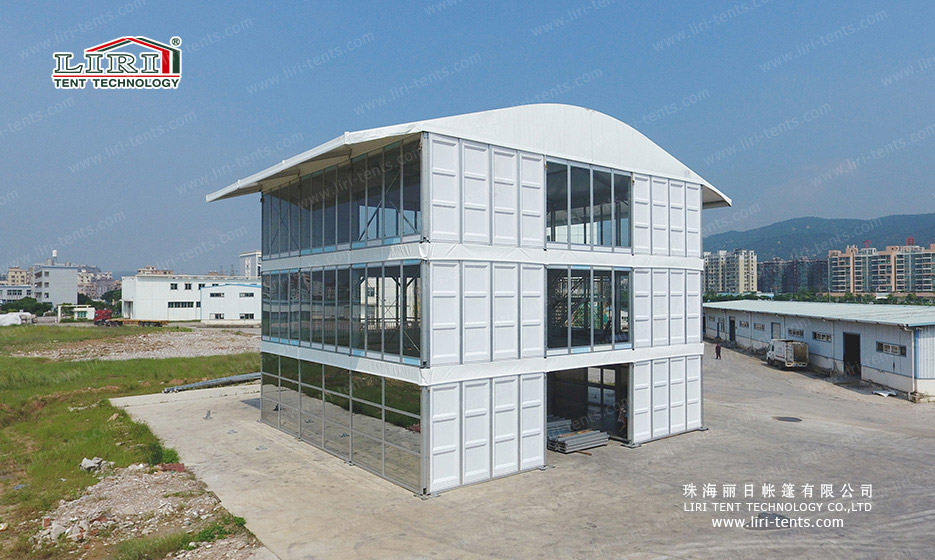

A tenda de três andares representa um novo avanço no setor da construção modular e móvel, mais um avanço na sequência do sistema modular de tendas de dois andares.

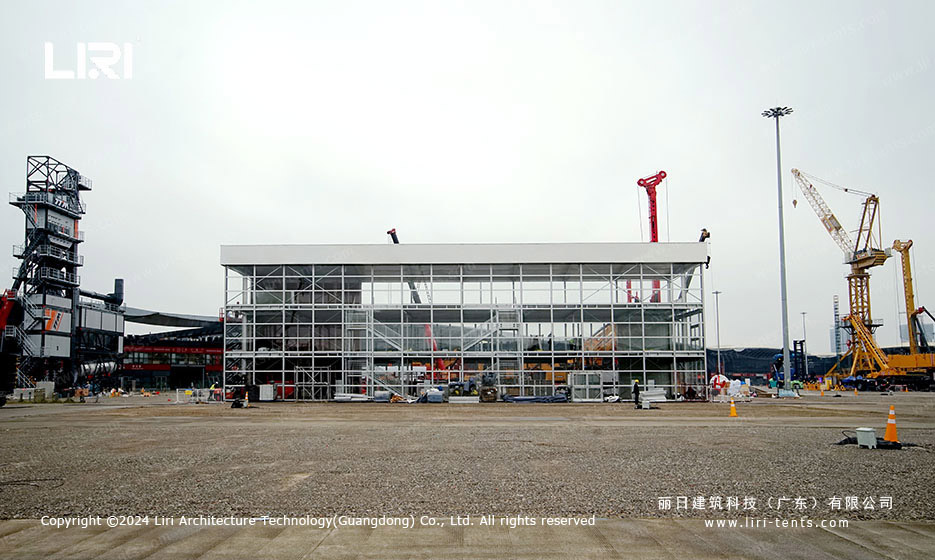

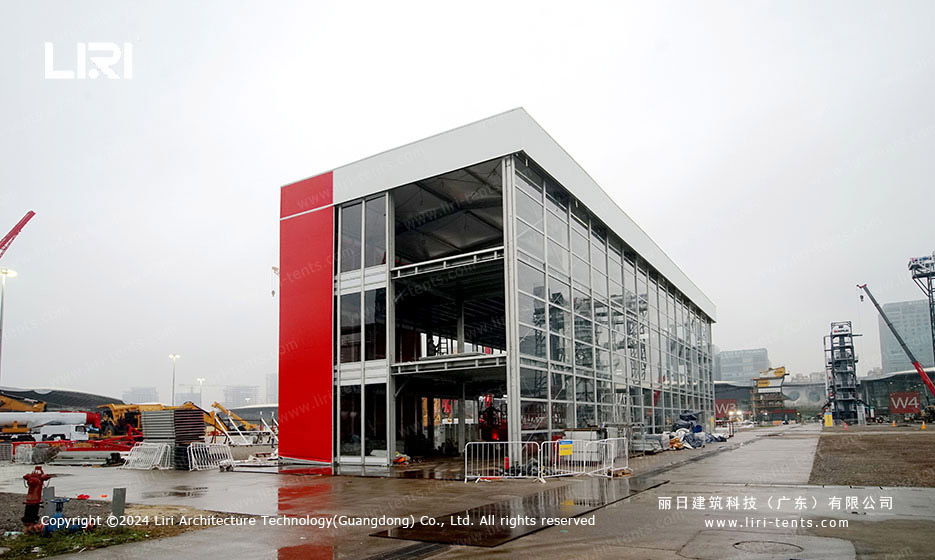

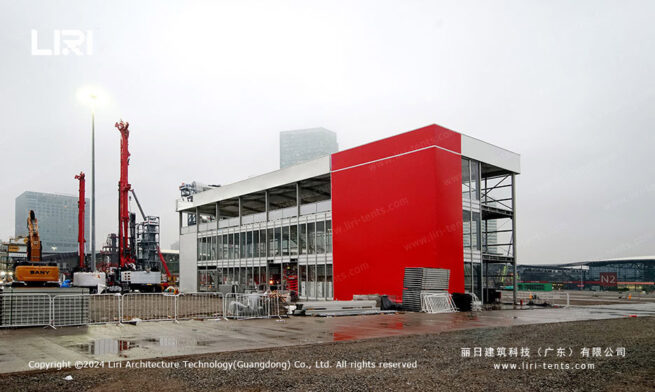

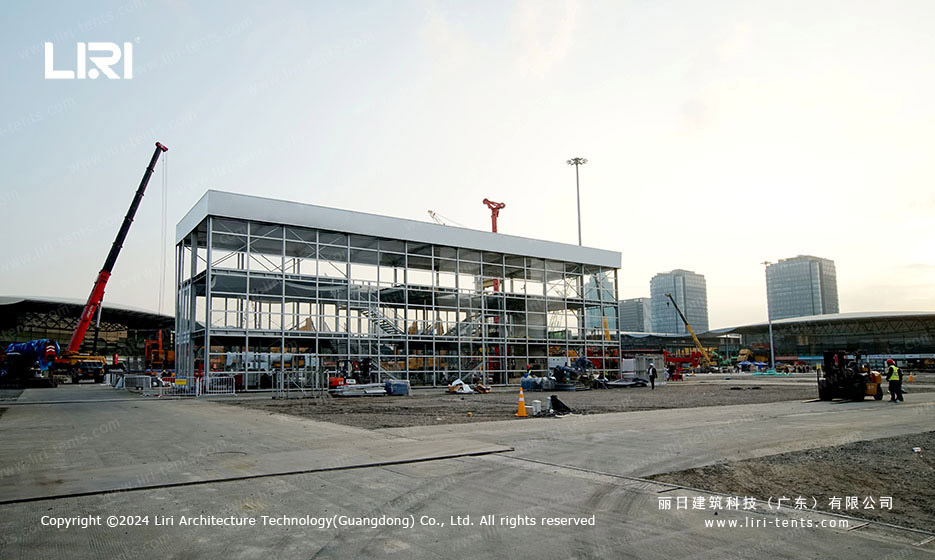

Triple decker tent is made of a high-strength aluminum alloy as the framework. Cassette wooden floor aluminum edged with alloy frame composite. Two optional height include 3.3m and 4m for each floor, internal height up to 12m.
All three floor is the modular structure. 5m per section, clear span width from 3m to 80m. We offer you an unimaginable space solution. More flexible, you can remove the first and second frame and floor and used as single-story tents or double floor tents. Quickly installation, zero residual material after dismantle, 100% reuse, green.

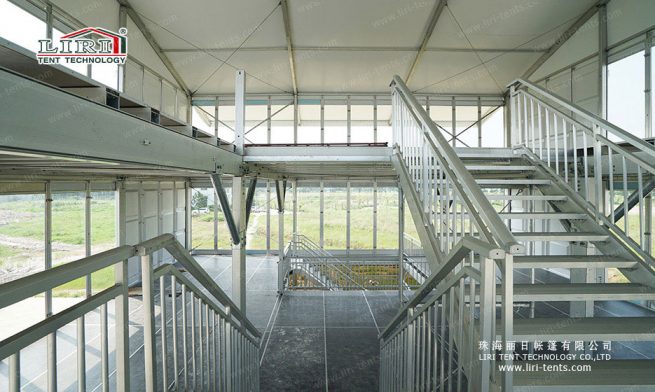

You can customize the three-story tent according to different demands, divided into the different functional area. Decorated with different accessories, like solid walls, floors, mantle trim, internal or outer stairs, etc. You can equip the three-story tent with a balcony to provide outdoor extra space, to achieve a broader view.
- Especificações do produto
Largura do vão Height of first floor Height of second floor Height of third floor Altura lateral Top Height Perfil principal 15m 3.35m 3.35m 3.3m 10m 12.5m 300x120x5mm (4 - channel) 15m 4m 4m 3.8m 11.8m 14.3m 300x120x5mm (4 - channel) 20m 3.35m 3.35m 3.3m 10m 13.3m 300x120x5mm (4 - channel) 20m 4m 4m 3.8m 11.8m 15.1m 300x120x5mm (4 - channel) 25m 3.35m 3.35m 3.3m 10m 14.1m 350x120x5mm (4 - channel) 25m 4m 4m 3.8m 11.8m 16m 350x120x5mm (4 - channel) 30m 3.35m 3.35m 3.3m 10m 14.9m 350x120x5mm (4 - channel) 30m 4m 4m 3.8m 11.8m 16.4m 350x120x5mm (4 - channel) - 3D Drawing
