2023 Canton Fair Exhibition Tent

Sobre o projeto

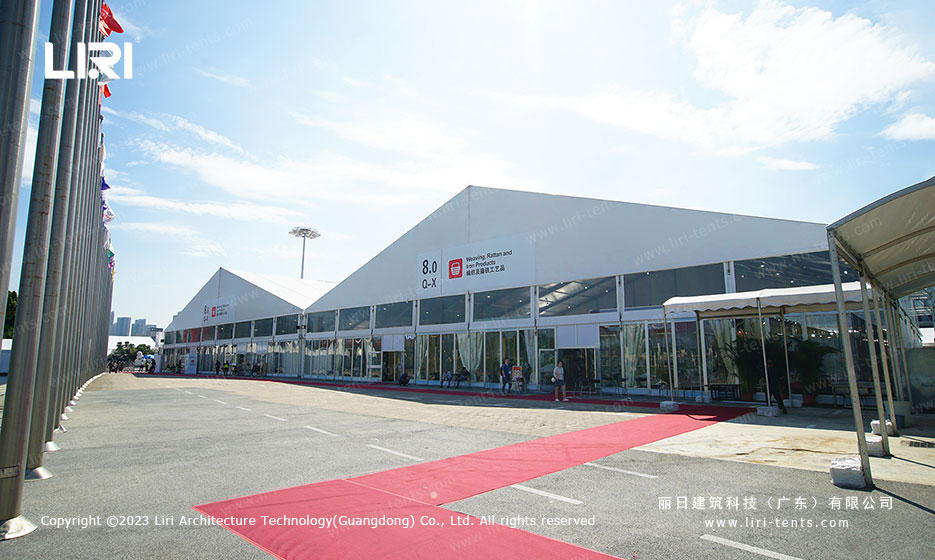

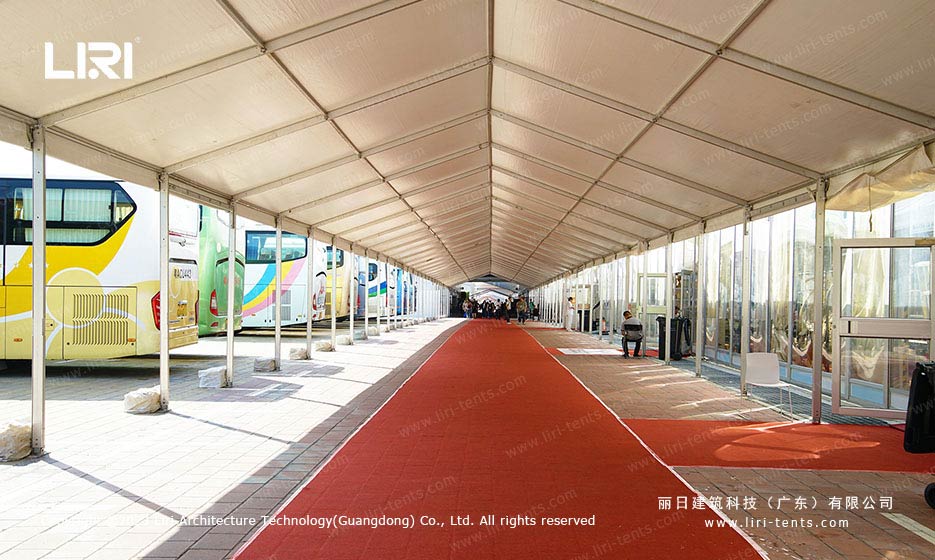

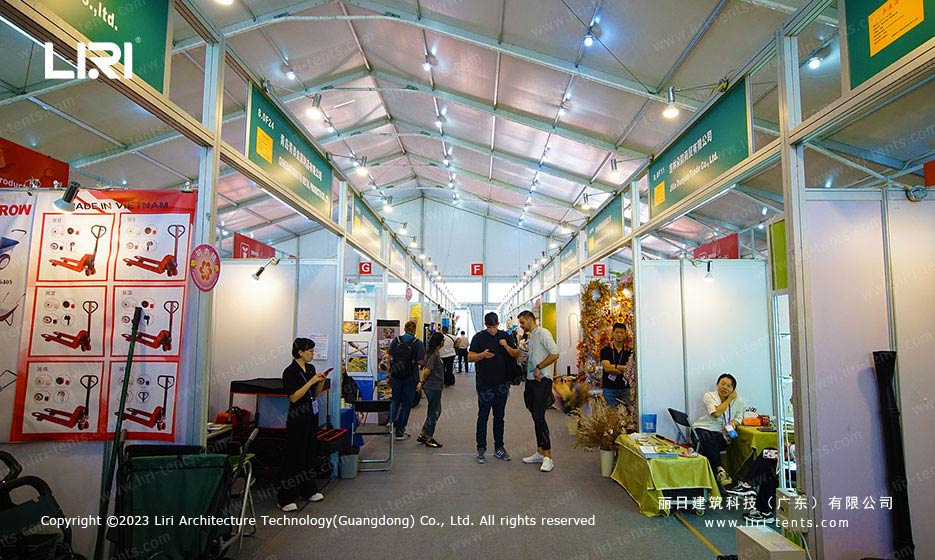

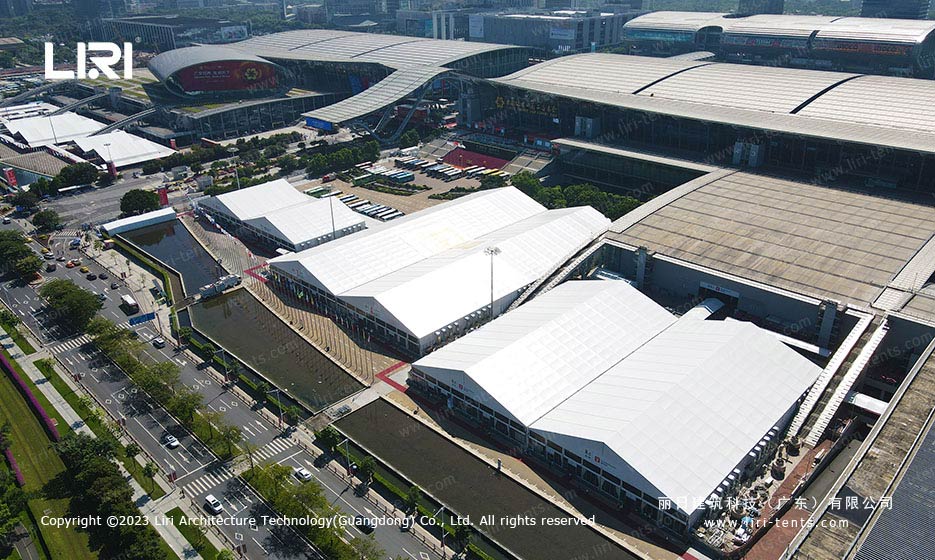

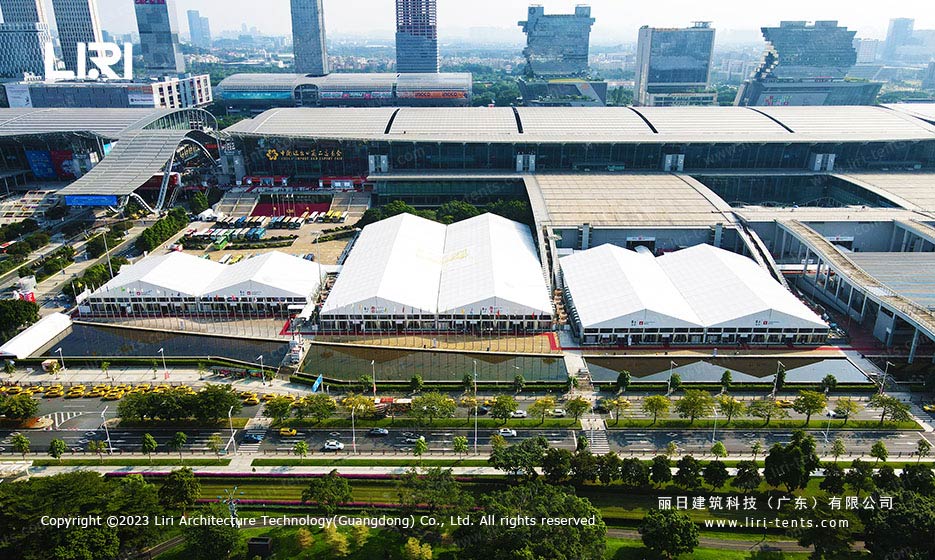

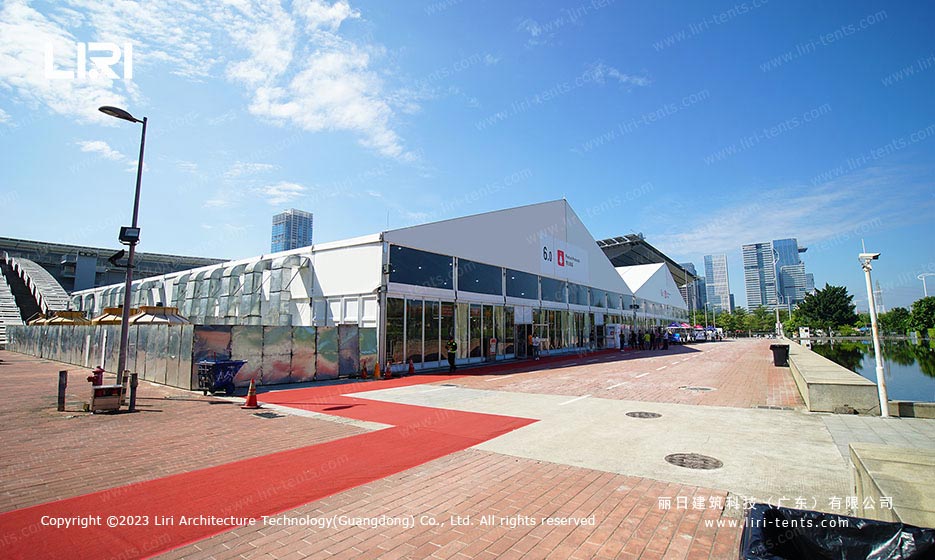

Liri Architecture Technology provided nearly 70,000 square meters of exhibition tents for the 134th Canton Fair recently and cooperated with Canton Fair for 22 years from 2001-2023. We provided different widths of aluminum and PVC clear span tents such as 3m, 6m, 8m, 9m, 10m, 12m, 15m, 20m, 30m, 40m width, used for Exhibition Halls, Security Check Points, Aisle, Lounges, Service Points, Coffee Points, Certificate Processing Centers and so on. In order to provide better tent service experience, we offered the advertising LOGO design for Canton Fair and painted on the roof, the tents are equipped with wooden floors, carpets, air conditioning, and lighting facilities to make the indoor environment more comfortable.

In the past 20 years, Liri had already served large events and exhibitions many times the domestic and abroad. We establish a good corporation relationship with the 2022 Beijing Winter Olympics, the 19th Hangzhou Asian Games, the Chengdu 2021 FISU World University Games, the China International Aviation & Aerospace Exhibition, the China Open, the USA International Mechanical Engineering Congress & Exposition, the Formula 1, got rich experience in various scale events and exhibitions.

The most important is Liri always focuses on independent research and innovation, we obtained hundreds of “design patents” and “invention patents”, and tent products are exported to over 120 countries and regions.

Especificações da série de tendas de exposição
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
40 m5 m11,5 m5 m400x120x6/7mm (4 - channel)
50 m5 m13m5 m400x120x6/7mm (4 - channel)
55m5 m14m5 m400x120x6/7mm (4 - channel)
60 m5 m14.6m5 m400x120x6/7mm (4 - channel)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento de PVC; impermeável 100%; ignífugo de acordo com as normas DIN4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
