60m x 100m Indoor Basketball Court

Modular Commercial Indoor Basketball Court

Sobre o projeto

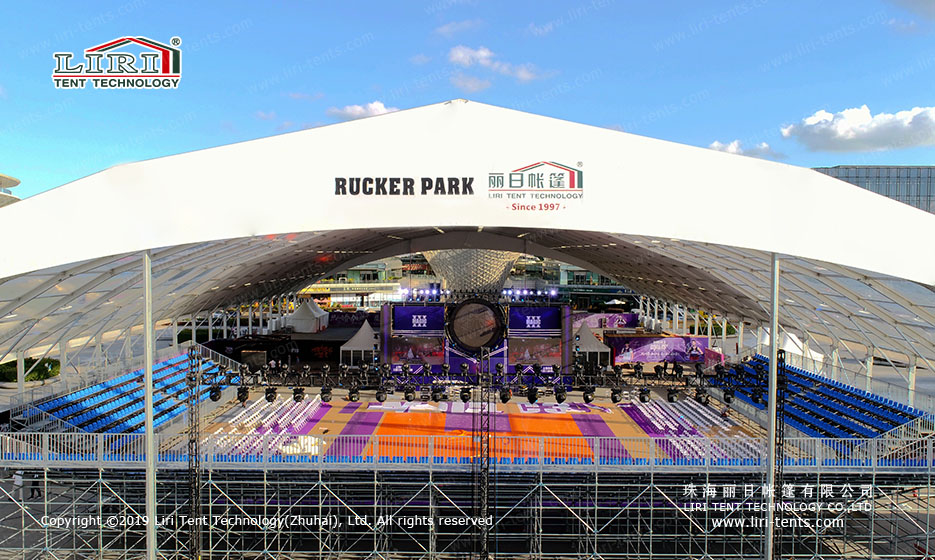

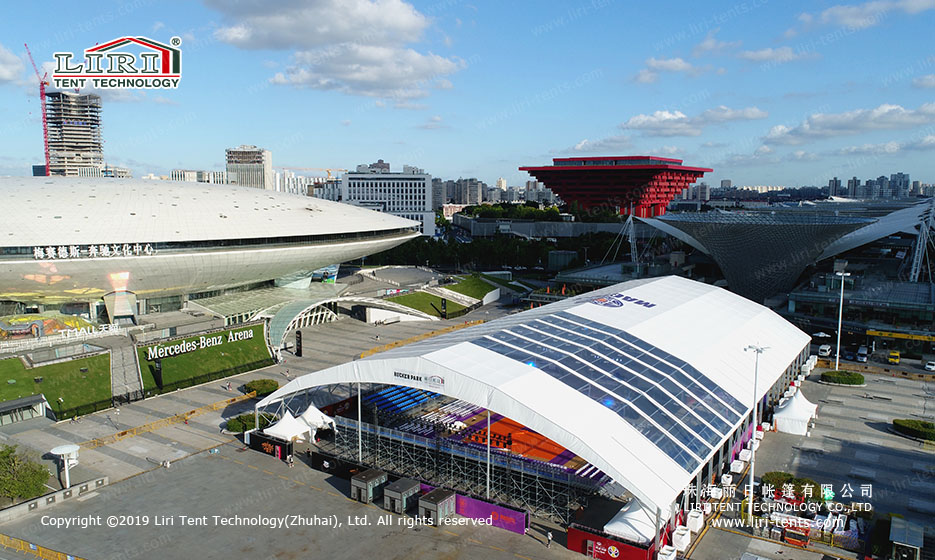

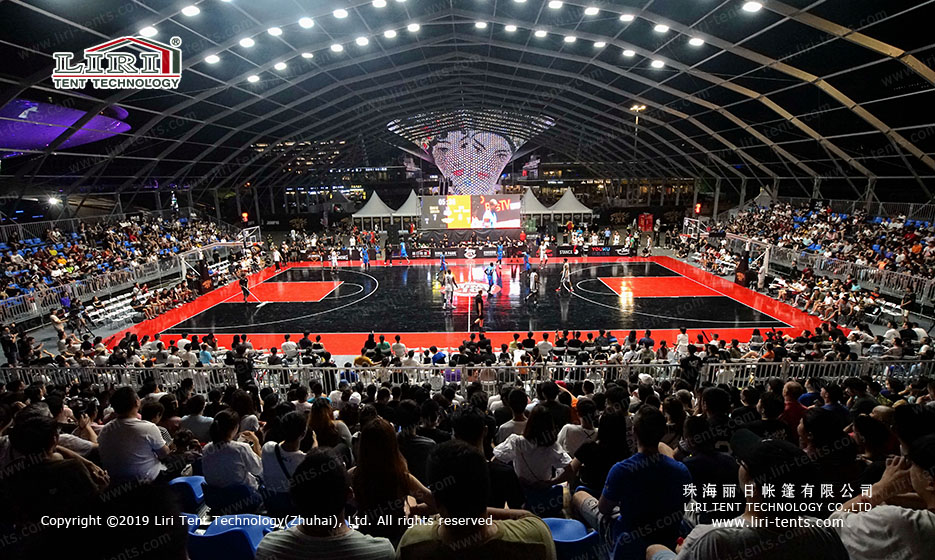

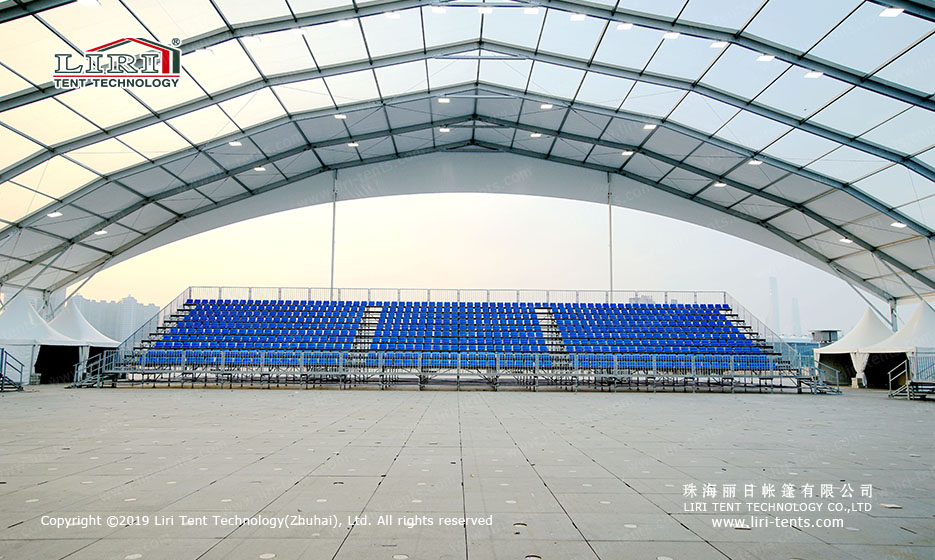

In the 60m x 100m indoor basketball court, wonderful dun ks from time to time, more than 3000 seats in grandstand are full filled this time. It is comparable to the NBA competition.

Due to the typhoon crossing, the 2019 JUMP 10 World Street ball Grand Prix was also deeply influenced. For the safety of the players and the fans who came to watch the game, the organizers had to move to the indoor stadium for 2 days. Liri tent and the organizers always pay close attention to the typhoon trend and weather changes. Finally, we hope that the good weather would arrive as scheduled. The finals would be held in the prepared 60-meters indoor basketball court, and we would do our best to give the fans a good view of the game.

Although the force majeure of typhoon weather,the aluminum alloy indoor basketball court is enough to prove that high-strength typhoon confirm its wind resistance ability. The super typhoon did not destroy it, which proved the wind resistance ability and durable quality of the sports event tent.

Polygon Huge Tent Series Specifications
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
10m4m7.16m5 m204x120x4mm (4 - channel)
12m4m7.4m5 m204x120x4mm (4 - channel)
15 m4m8.75m5 m204x120x4mm (4 - channel)
18m4m9.15m5 m204x120x4mm (4 - channel)
20 m4m9.42m5 m204x120x4mm (4 - channel)
25 m4m11.72m5 m256x121x5mm (4 - channel)
30 m4m13.2m5 m256x121x5mm (4 - channel)
40 m4m15.4m5 m300 x 120 x 5 mm (4 canais)
50m4m16m5 m300 x 120 x 5 mm (4 canais)
60m4m17m5 m400x120x7mm (4 - channel)
80m6m
21.5m
5 m500x150x7/8mm (4 - channel)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear resistant, self-cleaning ability, etc

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
