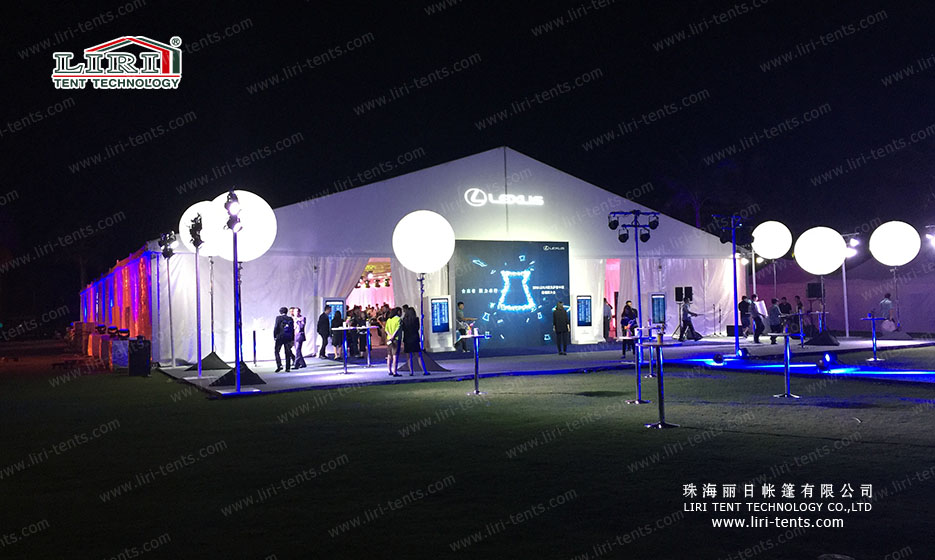

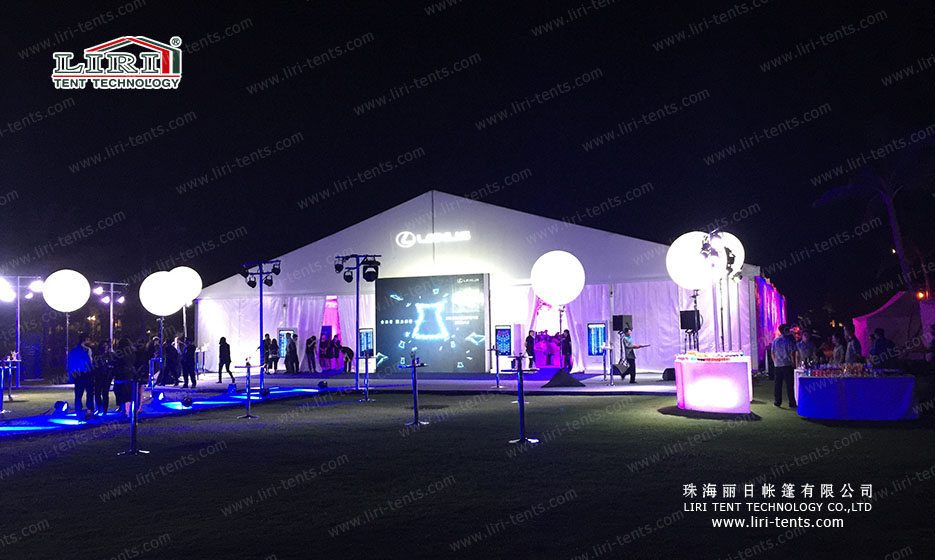

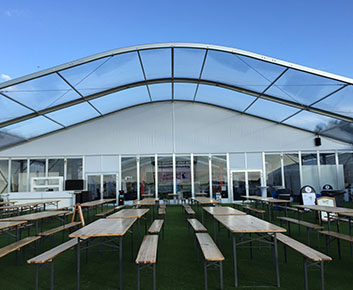

25×20 Clear Span Tent for Outdoor Party

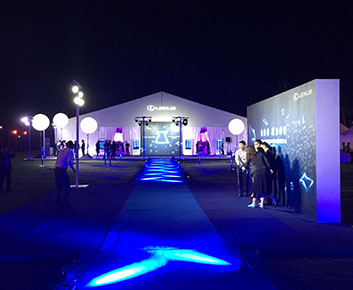

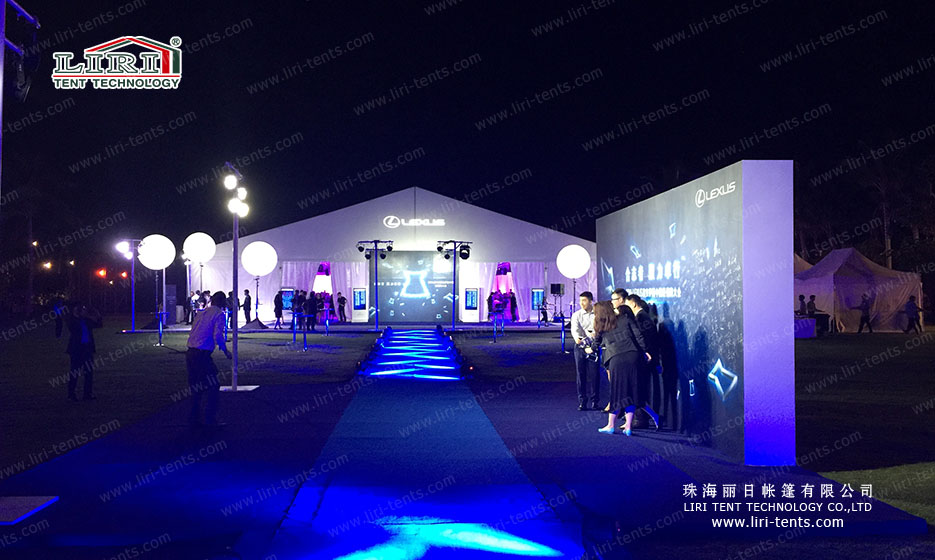

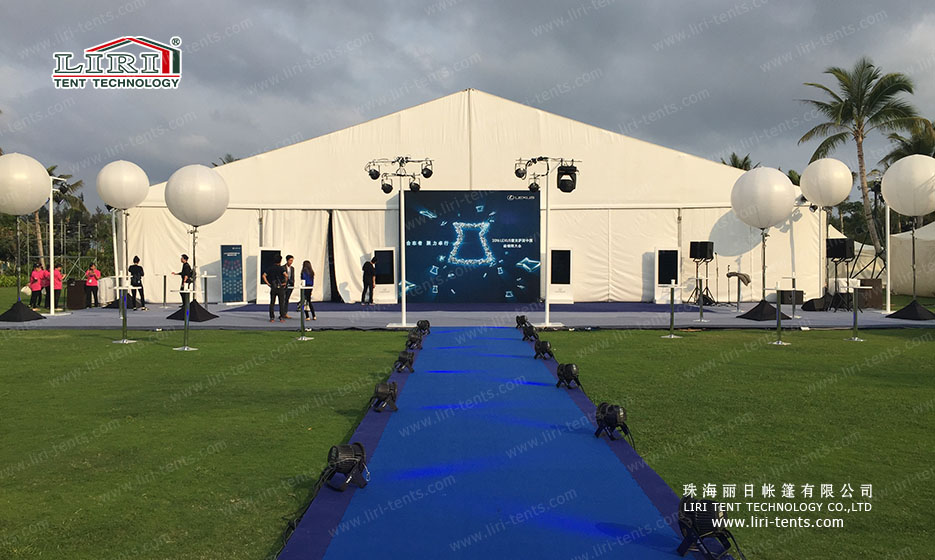

25x20m Clear Span Tent For Party With Sidewalls

Sobre o projeto

The 25×20 clear span tent of Liri Tent is designed with a very strong frame, and the wind loading can be 100km/h. It is very popular for outdoor permanent and semi-permanent events.

For the 25×20 clear span tent with sidewalls, it can cover about 500 people wedding or party events. The standard eave height of the 25×20 is 4m. The modular design of the big tent increases or decrease its length by 5m bay basis, so it is a very flexible design for the semi-permanent purpose.

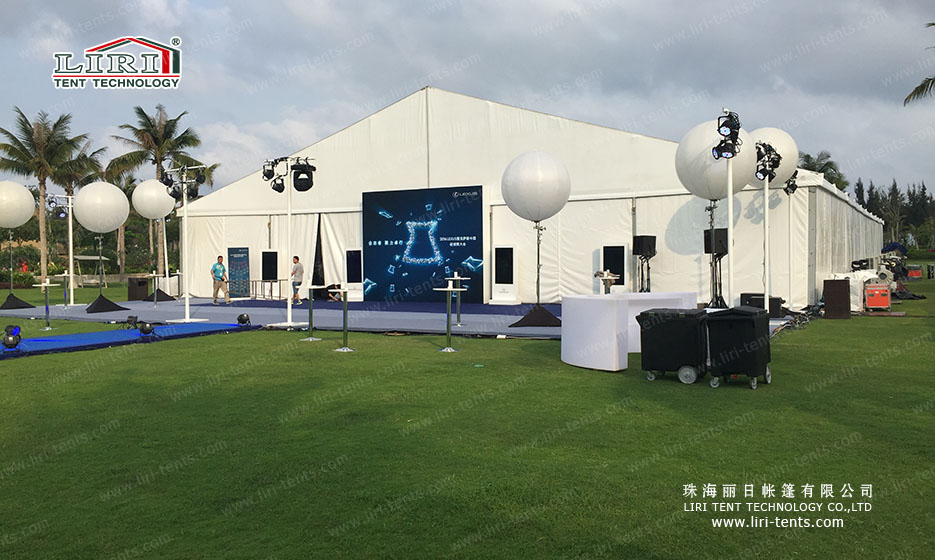

For the different functions, the party marquee tent of Liri Tent can fix with different accessories, like the high classic hard walls system, flooring system and so on.

Party Tent Series Specifications
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
20m4m7.2m5m256x121x5mm (4 - channel)
25m4m8.0m5m256x121x5mm (4 - channel)
30m4m8.9m5m256x121x5mm (4 - channel)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear-resistant, self-cleaning ability, etc

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
