20m x 40m Clear Span Temporary Warehouse Tent​

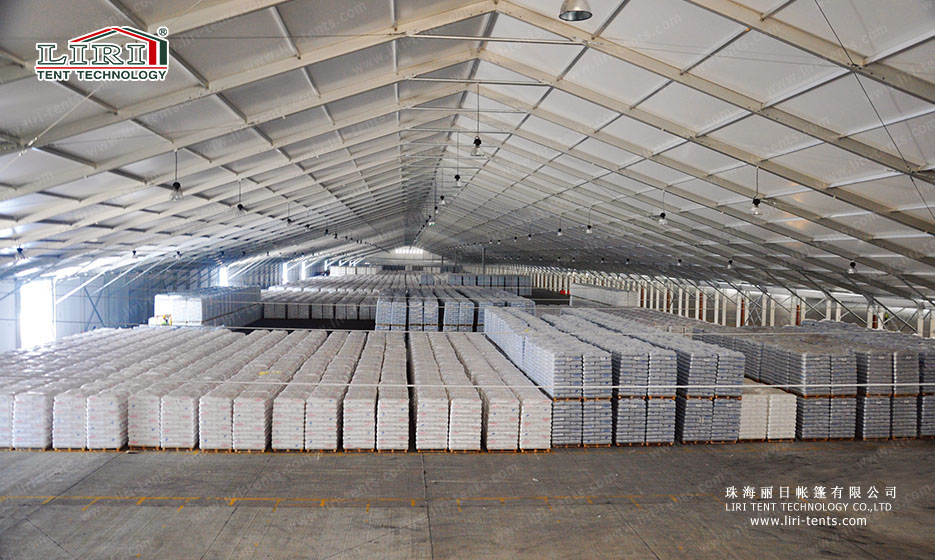

40m Clear Span Industrial Tent

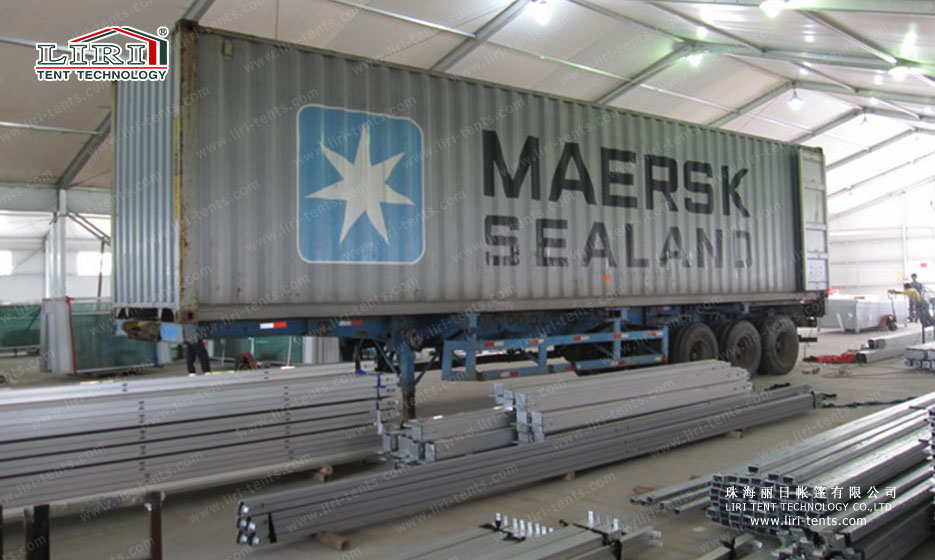

big storage tent

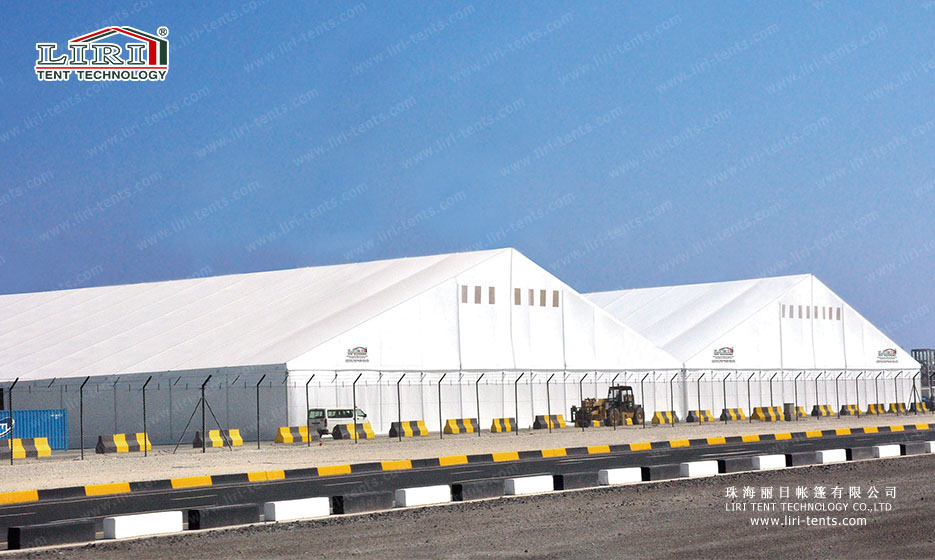

Industrial Tent for sale

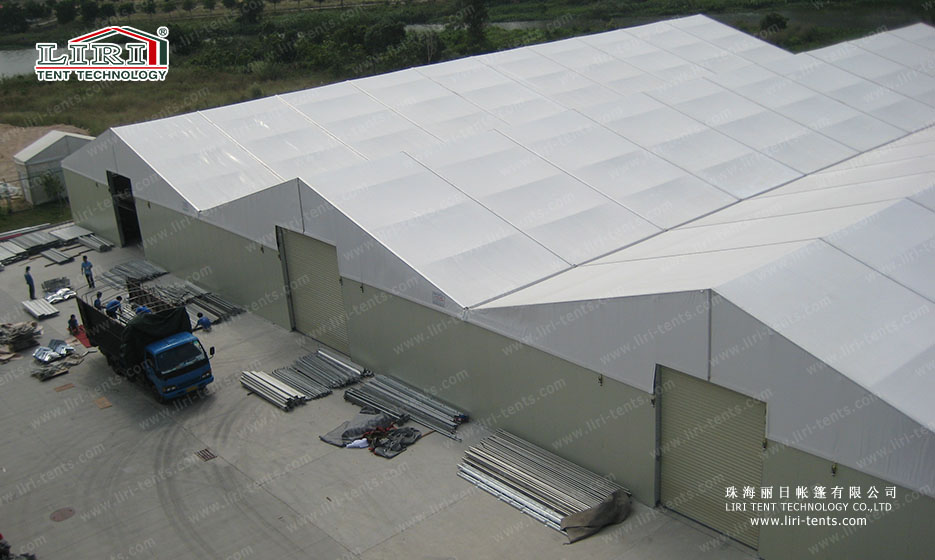

outdoor storage tent

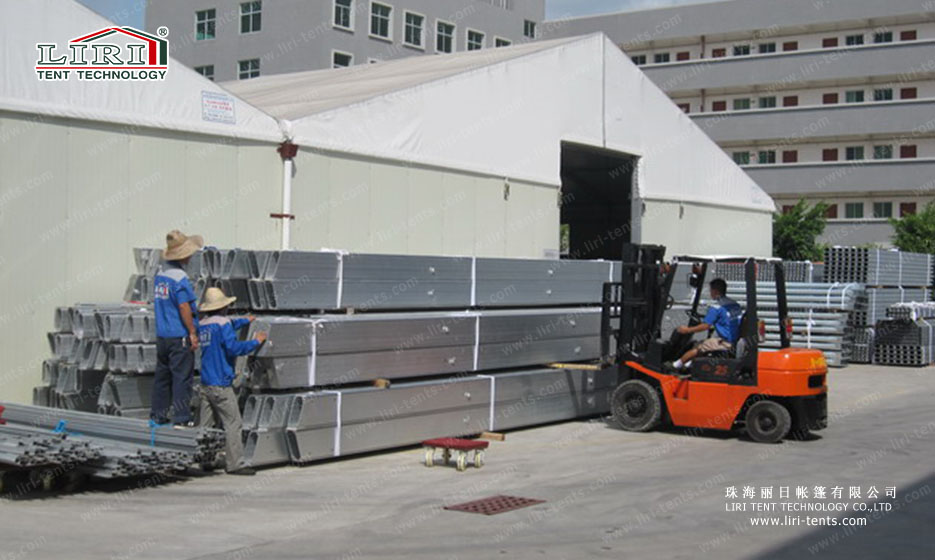

Temporary Warehouse Tent sale

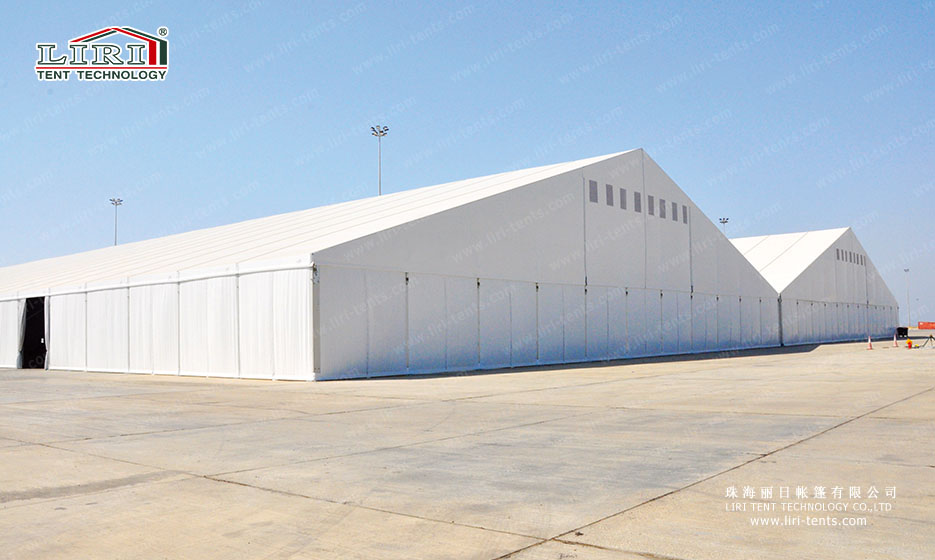

huge outdoor warehouse tent

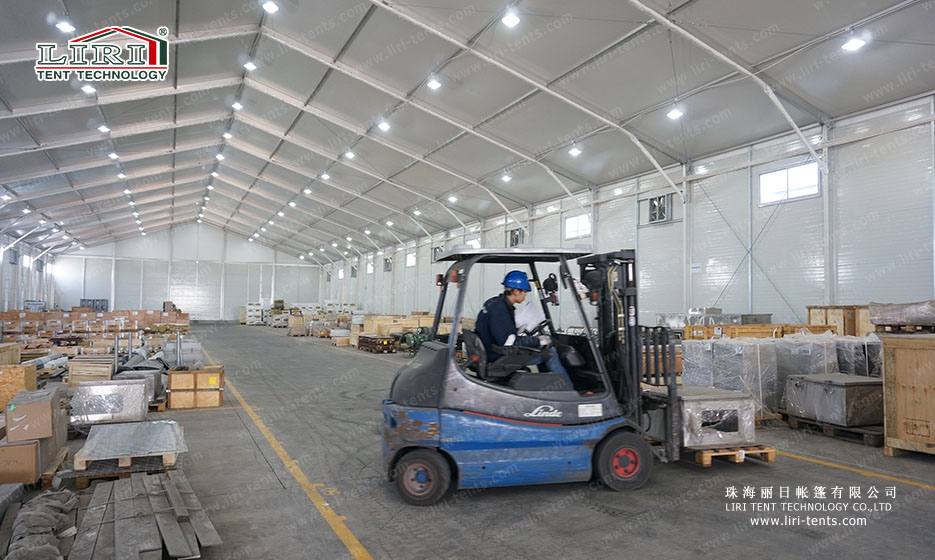

storehouse tent

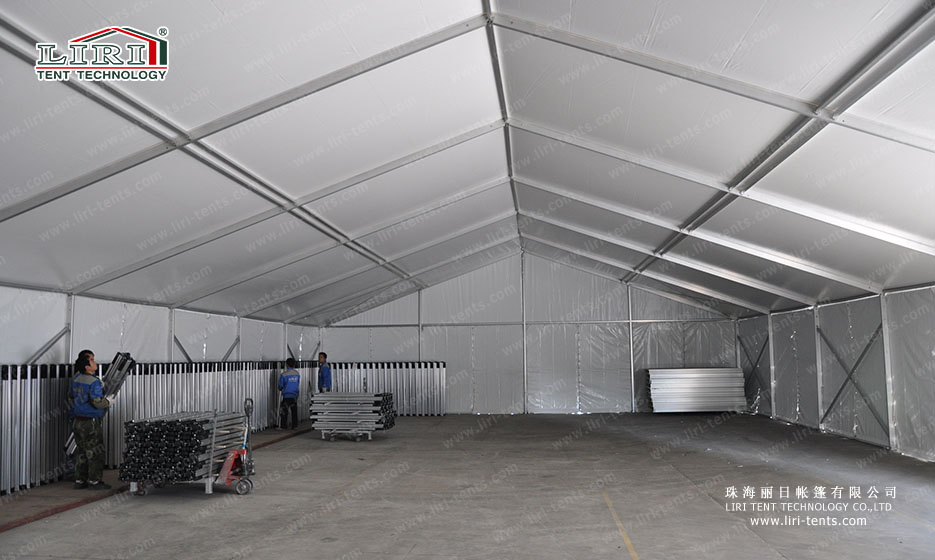

warehouse tent with aluminum

20m-40m Temporary Warehouse Tent

Sobre o projeto

The new thermal PVC waterproof storage tent is the latest warehouse tent series from Liri Tent. Besides the performance of the original warehouse tent, the thermal insulation roof can be good for heat isolation and snow loading. This product is the latest warehouse tent in China. The benefits of using the temporary warehouse tent​ are:

  1. Short construction time: It takes 3 to 4 days to assemble a 1,000sqm temporary warehouse tent.
  2. Materials are 100% reusable when moving to another area.
  3. The wall system has options for a sandwich panel hard wall and PVC wall to satisfy different needs. The structure is able to extend to unlimited lengths.
  4. Rolling door system can be used for loading entrance for truck or forklift from four sides of the warehouse tent.
  5. Roof cover uses 650-850g/m2 coated PVC polyester textile and flame retardant to DIN 4102 BI, M2.
  6. The volume of the whole structure uses little space for storage and transportation.
  7. The thermal insulation roof tent is able to resist snow loading of three levels. These levels include 25kg,50kg, or 75kg, which can protect you from most of the weather conditions.
Industrial Tent Series Specifications
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
5 m4.2m5.05m5 m204 x 120 x 4 mm (4 canais)
7,5 m4.2m5.46m5 m204 x 120 x 4 mm (4 canais)
10 m4.2m5.84m5 m204 x 120 x 4 mm (4 canais)
12 m4.2m6.16m5 m204 x 120 x 4 mm (4 canais)
15 m5.2m7.6m5 m256 x 121 x 5 mm (4 canais)
20 m5.2m8.4m5 m256 x 121 x 5 mm (4 canais)
25 m5.2m9.2m5 m300 x 120 x 5 mm (4 canais)
30 m5.2m10 m5 m350 x 120 x 5 mm (4 canais)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento em PVC; impermeável 100%; ignífugo de acordo com as normas DIN 4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
