Module Monoridge Tent

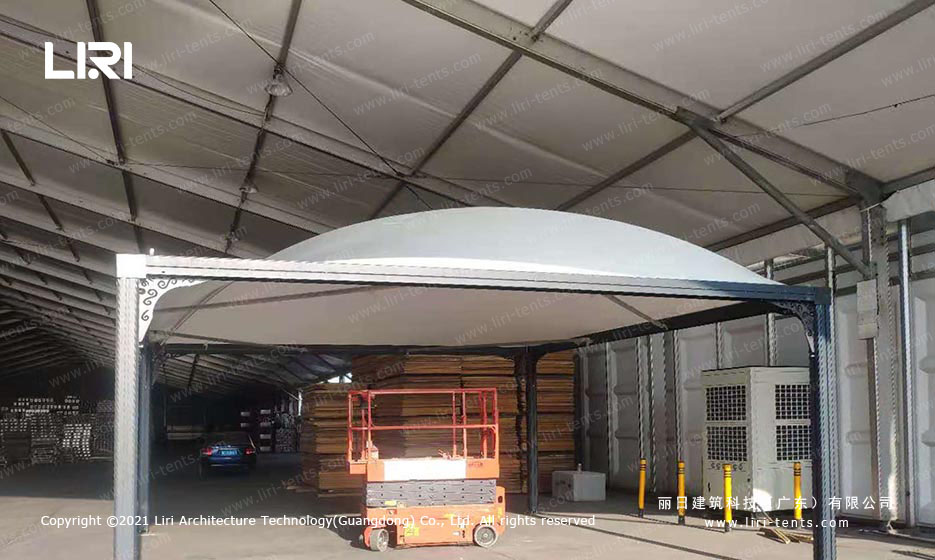

The module monoridge tent was created by Liri. The PVC roof cover is only supported by a strut, and the top is semicircular. From the side, it looks like an undulating mountain peak, and its unique shape and smooth lines are very artistic.

Compared with other module tents, the module monoridge tent is simpler in structure and more convenient in installation. We adopt high strength 6061 / T6 (hardness 15HW) aluminum alloy to make the whole structure, which is not only lighter in weight, but also stronger and safer.

For the PVC fabric, we adopt double sides PVC-coated polyester textile, flame retardant to German standard DIN4102 B1, M2, and America standard CFM70. The flame retardant effect is much better.

Our module monoridge tent seems simple, but it can still be compatible with various accessories of the module pagoda tent, such as ABS wall/glass door/sliding door/single & double wing glass door/cassette flooring. It also retains the characteristics that all these module tents can be connected at will, and can be spliced into multiple independent or the same space, sharing the upright supports and eave beams, realizing seamless connection and unlimited expansion. It can be applied to the temporary exhibition halls, mobile offices, outdoor multi-functional spaces, etc., with wide application scope and strong flexibility.
