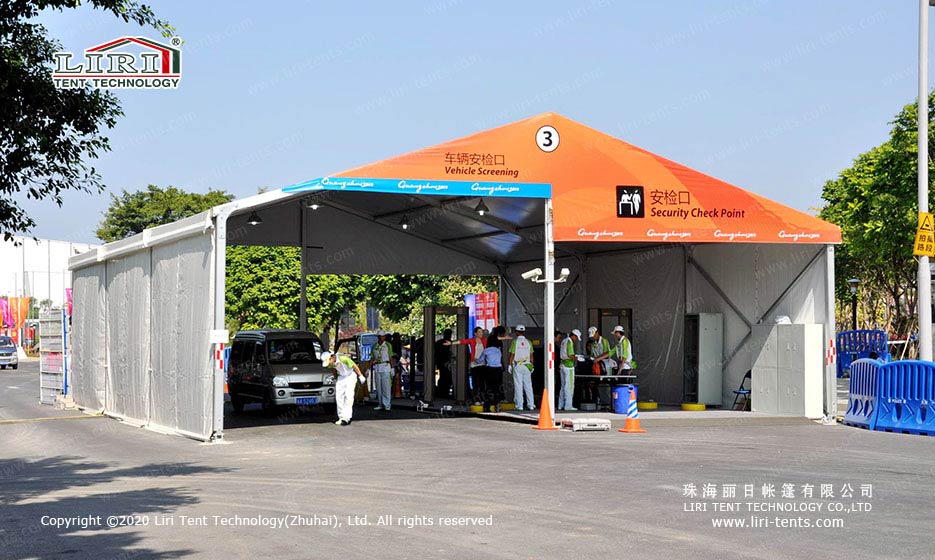

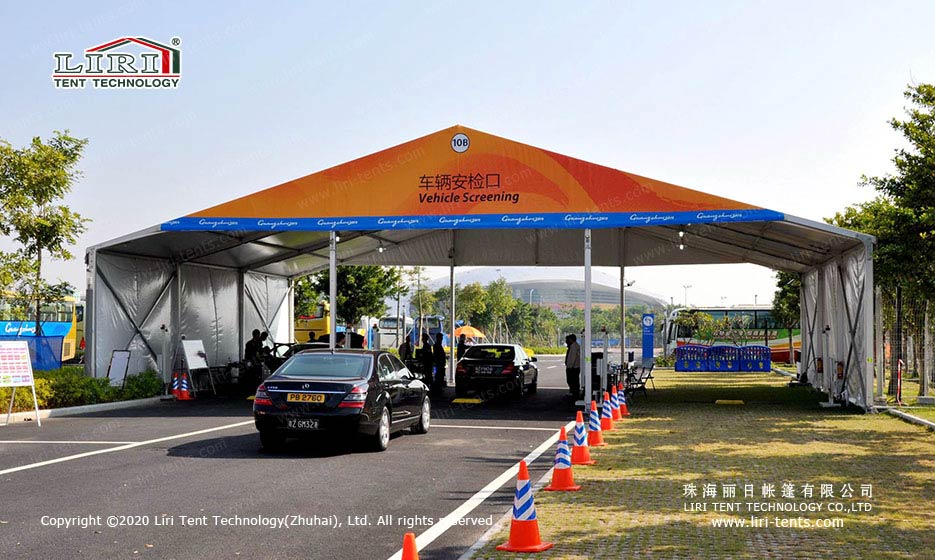

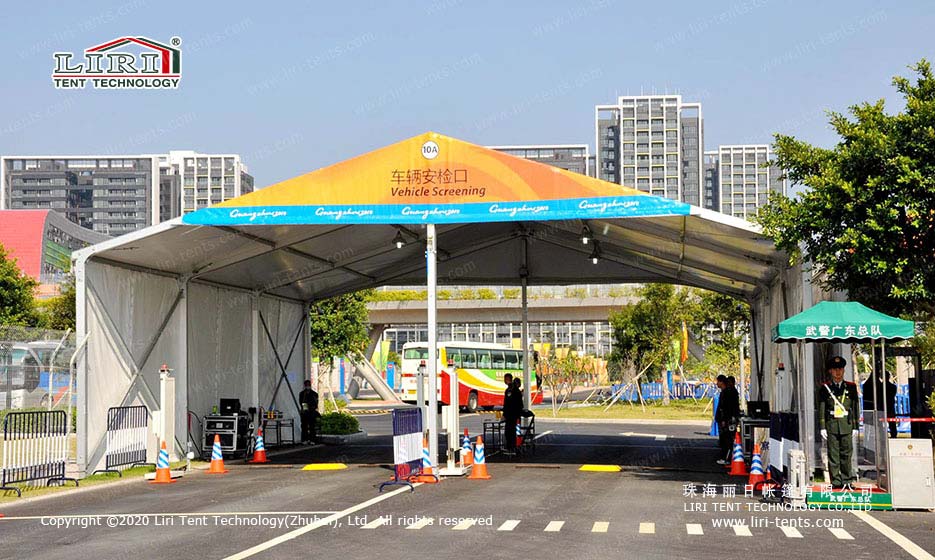

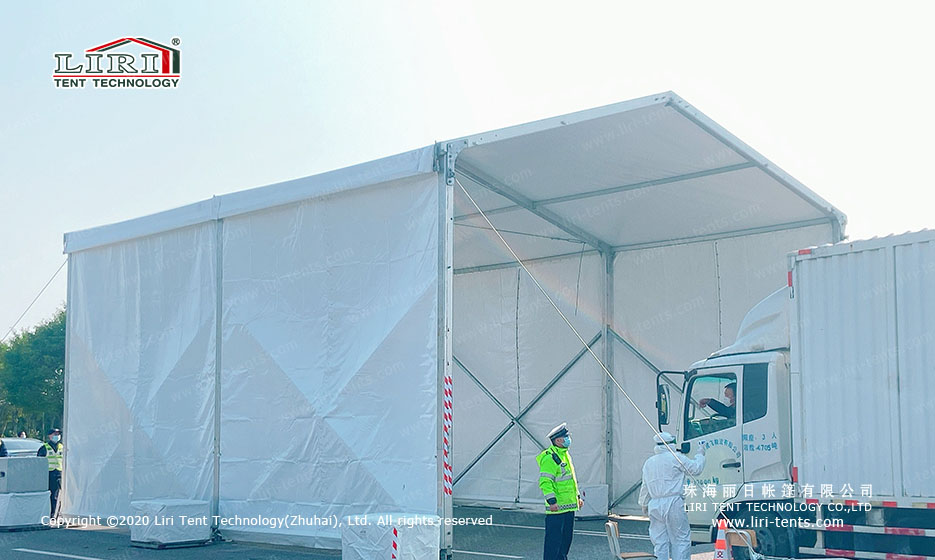

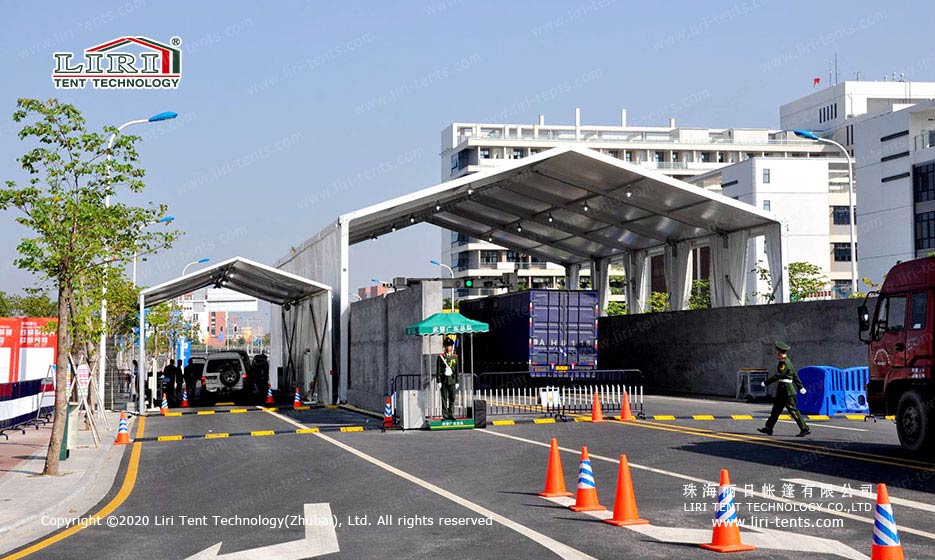

Liri’s high-strength aluminum alloy frame tent with high resistance to wind and rain, providing a better working environment for workers in severe weather such as wind, snow and low temperatures, and also make the epidemic prevention and inspection work more smoothly. It can be used as temporary vehicle detection tent, personnel temperature detection tent, isolation tent, etc.
Vehicle Epidemic Detection Tent

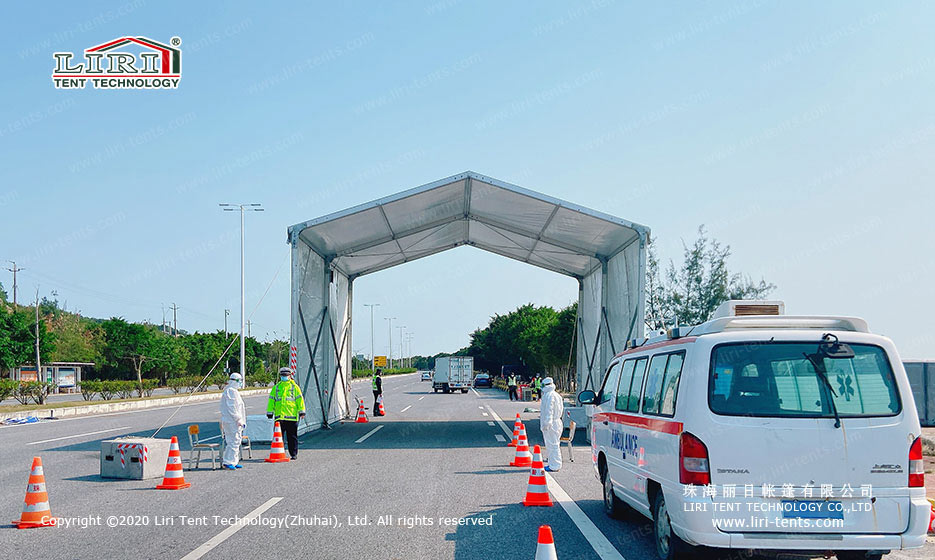

Vehicle Epidemic Detection Tent Introduce
Sobre o projeto
Medical Tents Series Specifications
| Largura do vão | Altura lateral | Altura da cumeeira | Distância entre módulos | Perfil principal |
|---|---|---|---|---|
| 3 m | 2,6 m | 3,16 m | 3 m | 100 x 48 x 3,0 mm (4 canais) |
| 4 m | 2,6 m | 3,35 m | 3 m | 100 x 48 x 3,0 mm (4 canais) |
| 5 m | 2,6 m | 3,52 m | 3 m | 100 x 48 x 3,0 mm (4 canais) |
| 6 m | 2,6 m | 3,71 m | 3 m | 100 x 48 x 3,0 mm (4 canais) |
| 8 m | 2,6 m | 4,05 m | 3 m | 100 x 48 x 3,0 mm (4 canais) |
| 9 m | 2,6 m | 4,24 m | 3 m | 100 x 48 x 3,0 mm (4 canais) |
| 10 m | 2,6 m | 4,4 m | 3 m | 100 x 48 x 3,0 mm (4 canais) |
| 12 m | 2,6 m | 4,76 m | 3 m | 100 x 48 x 3,0 mm (4 canais) |
Características
Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência
Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento de PVC; impermeável 100%; ignífugo de acordo com as normas DIN4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.
Conectores: aço resistente galvanizado a quente
Faixa de temperatura admissível: de -30 °C a +70 °C
Resistência ao vento: máx. 100 km/h
Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)
Fácil de montar e desmontar
Sem postes no interior, 100% do espaço interno disponível
