Tenda para o Espetáculo Aéreo de 2022

Sobre o projeto

For a long time, Zhuhai Airshow and Liri Tent have maintained a well cooperative relationship. Since participating in the second airshow in 1998, we have witnessed each other’s growth and progress in 24 years. The air show in this year debuted a number of new models, makes it an distinctive air show in history.

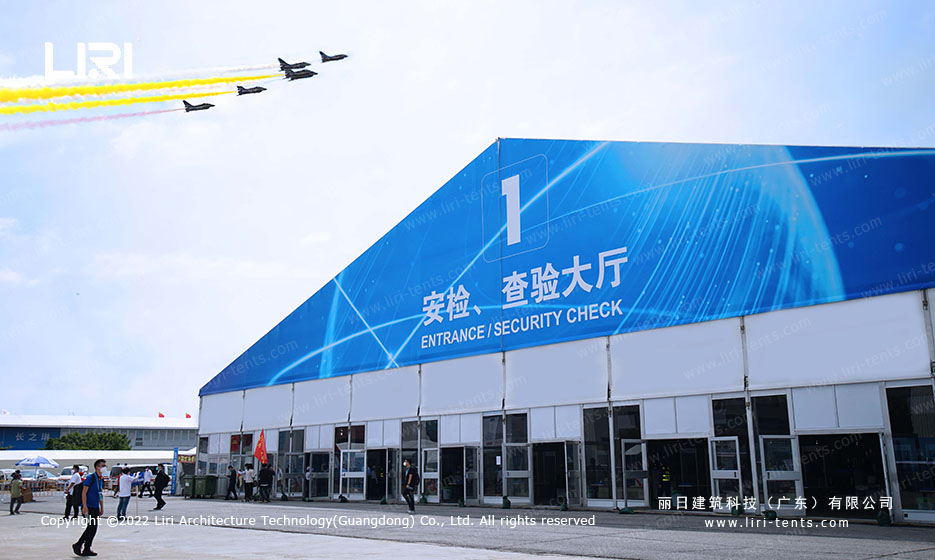

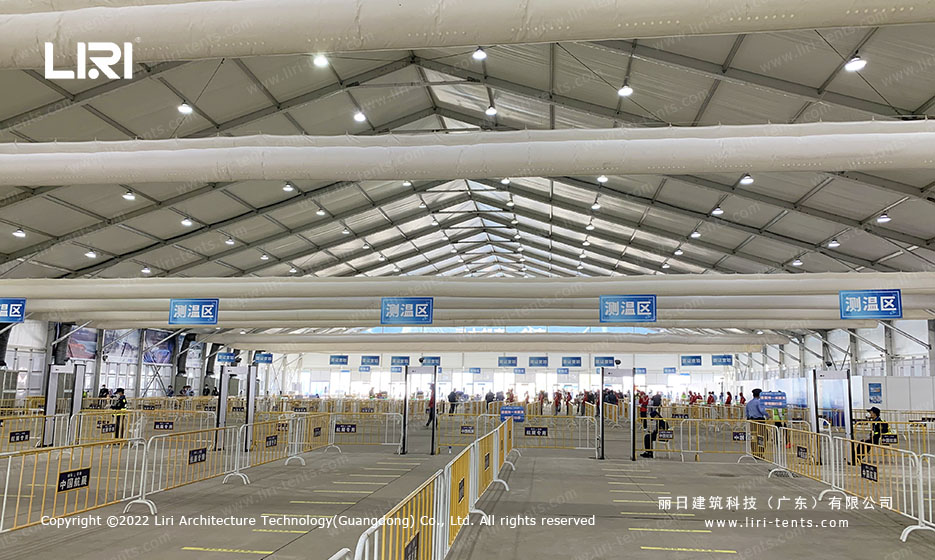

In order to ensure Zhuhai Air Show successfully held, Liri Tent started tent construction in October and arranged nearly 300 workers. Tents from Liri Tent can be used for a variety of different purposes, including: security, restaurants, mobile hangars, temporary storage, etc. Among them, the security inspection hall, the certificate processing hall and the ticket hall with a clear span of 50 meters tent can provide a more comfortable entry method for all exhibitors.

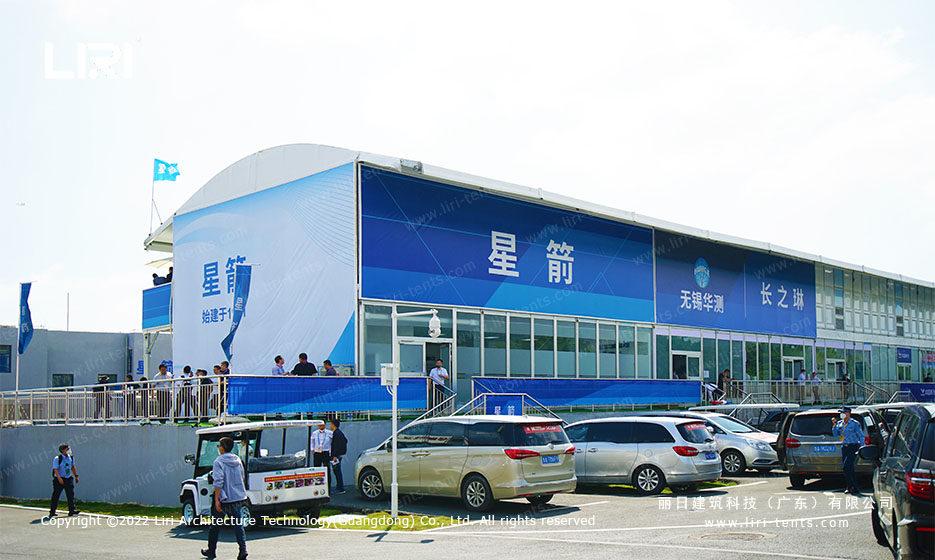

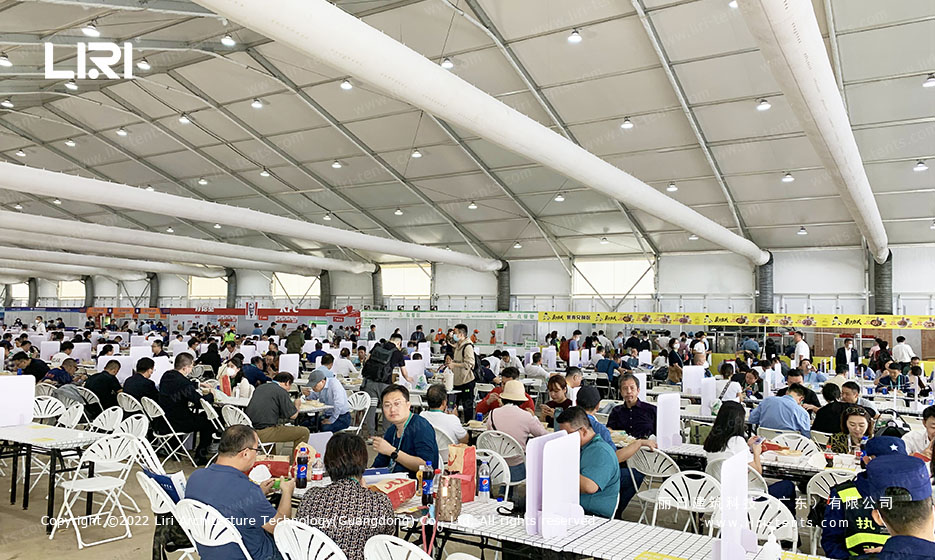

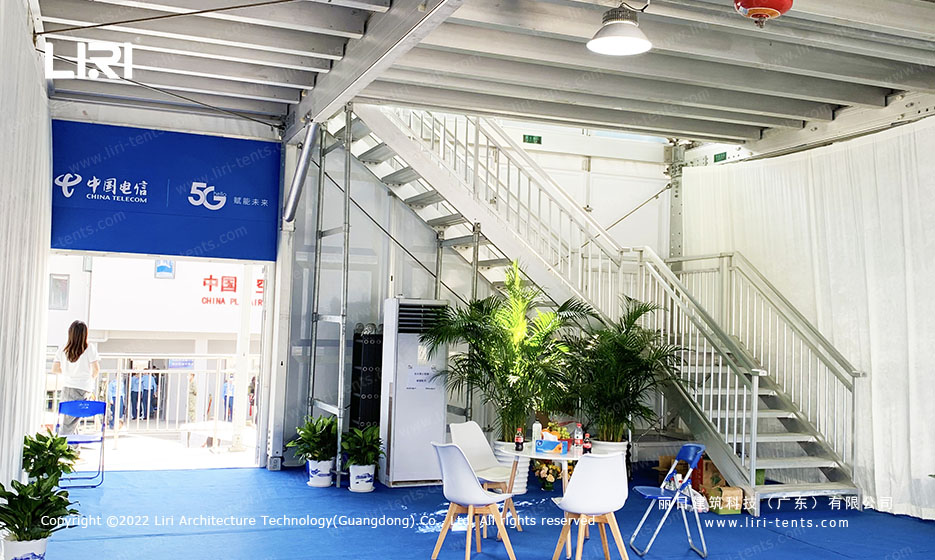

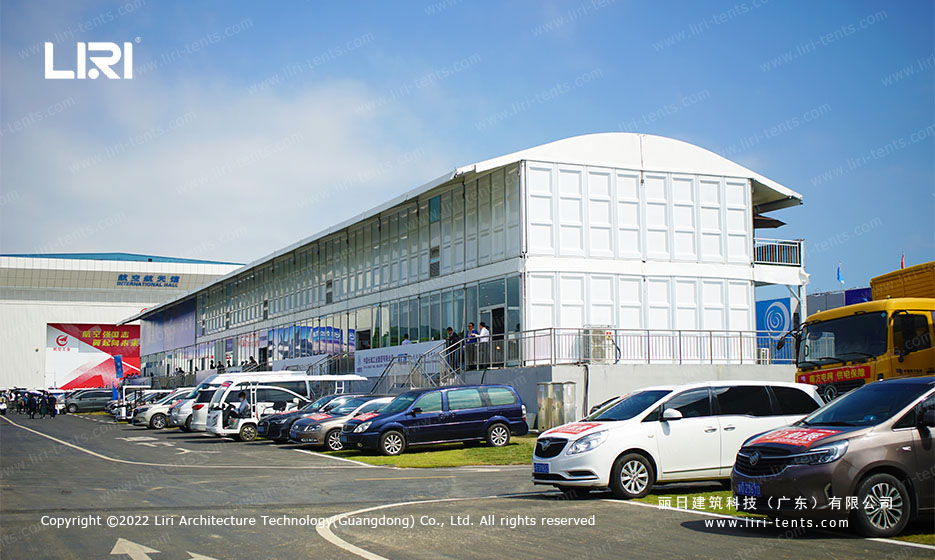

Different from previous air shows, the inflatable cube tent is designed with intelligent inflatable double-layer insulation covers, not only has outstanding heat insulation effect, but also sound insulation performance, which able to create a quiet indoor environment. The eave part has banner advertising space to create excellent outdoor advertising effect. The specially designed double-decker tent for VIP reception hall not only solves the problem of reception, the balcony on the second floor also provide a panoramic view of the field. In addition, in order to provide the audience a better experience of the air show at a close distance, a large number of audience awnings are distributed in different directions, making people comfortable to watch the flight and land performances. It is worth mentioning that this time Liri Tent also provides two modular tents at the entrance, very attractive of the shape. The modular tent is able to joint freely by each side, flexible according to the ground condition. Drainage from the upright beam is a special design for rain proof . In addition, the modular structures not only solved the problem of reception and dining in this exhibition, but also set up a temporary parking space for vehicles.

Airshow tents can be used for various purposes, and fast to install without making generate construction waste, no damage to the surrounding environment. It has obvious advantages in time and cost, as well as better solve the needs of various temporary facilities for large-scale exhibitions.

Especificações da série de tendas de exposição
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
10 m8 m8.54m5 m300 x 120 x 5 mm (4 canais)
15 m8 m8.89m5 m300 x 120 x 5 mm (4 canais)
20 m8 m9.2m5 m300 x 120 x 5 mm (4 canais)
25 m8 m9.5m5 m300 x 120 x 5 mm (4 canais)
30 m8 m9.8m5 m300 x 120 x 5 mm (4 canais)
40 m8 m10 m5 m300 x 120 x 5 mm (4 canais)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento de PVC; impermeável 100%; ignífugo de acordo com as normas DIN4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
