Tendas para eventos desportivos dos 19.ºs Jogos Asiáticos

Asian Games Hangzhou 2022

Sobre o projeto

After successfully hosting the FISU World University Games, China will once again host another sports event, the 19th Asian Summer Games, in Hangzhou on September 23, 2023. In 2010, when Liri cooperated with the Guangzhou Asian Games for the first time, we accumulated rich experience in the temporary construction of tents for large-scale sports events, made important contributions to the preparation and holding of the Guangzhou Asian Games, LIRI made a contribution to the event and brought a better viewing experience for the audience.

With nearly 30 years of tent structure research and development technology, a professional construction team of hundreds of people, more than 100 tent styles, and decades of experience in sports event tent service, Liri Architecture Technology once again cooperated with the 19th Asian Games. As an enterprise with a factory of 120,000 square meters. Liri has supplied hundreds of sets of temporary tents in a short period of time and solved other supporting facilities required on site.

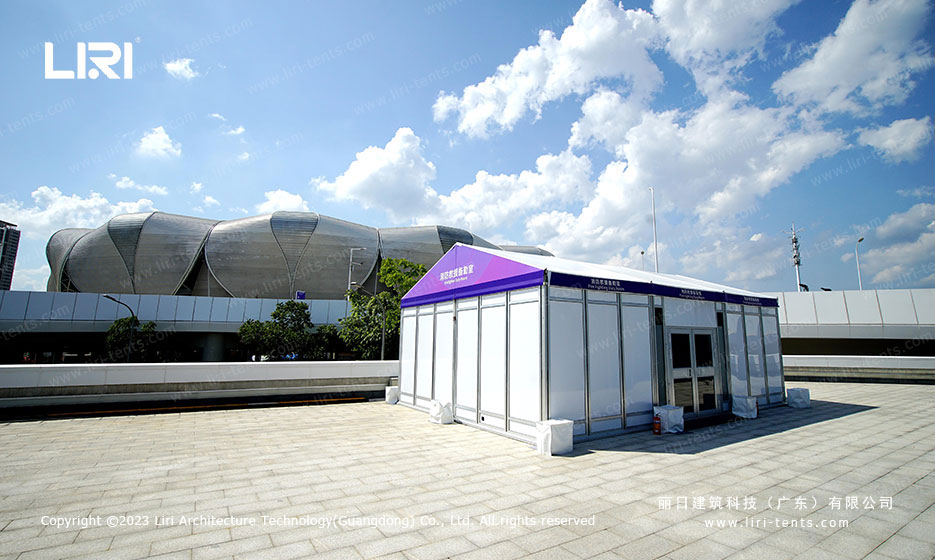

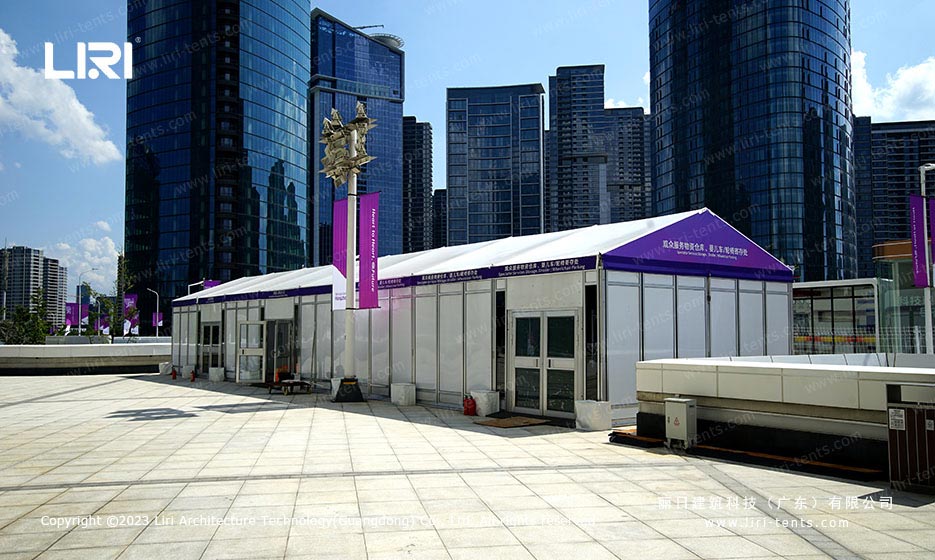

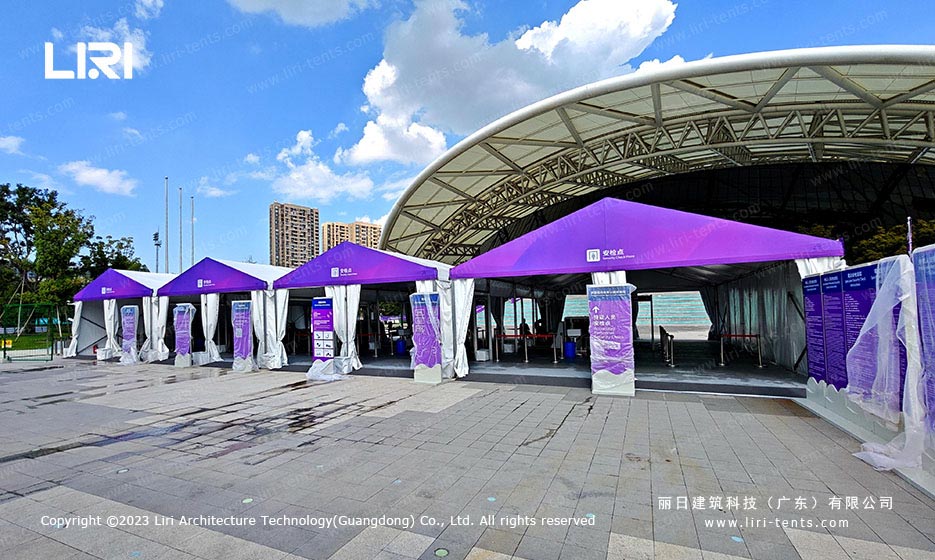

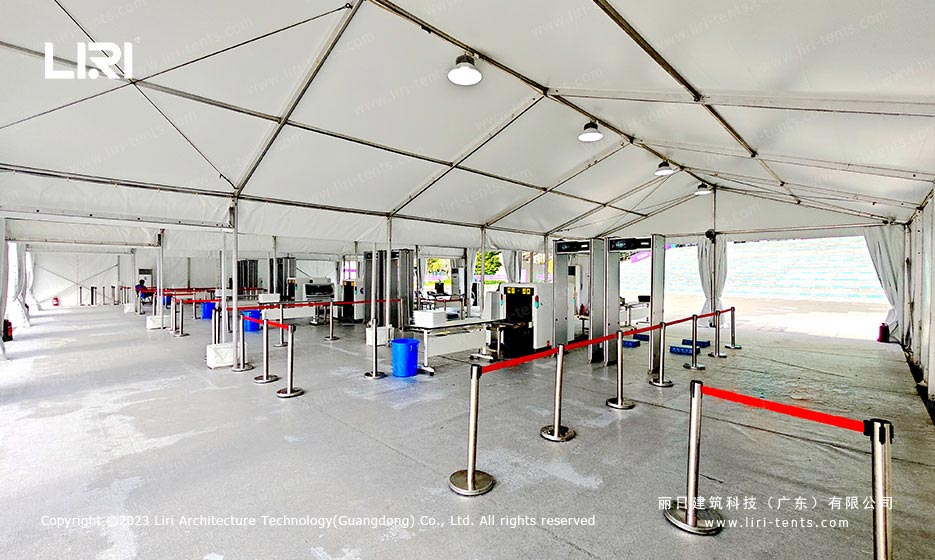

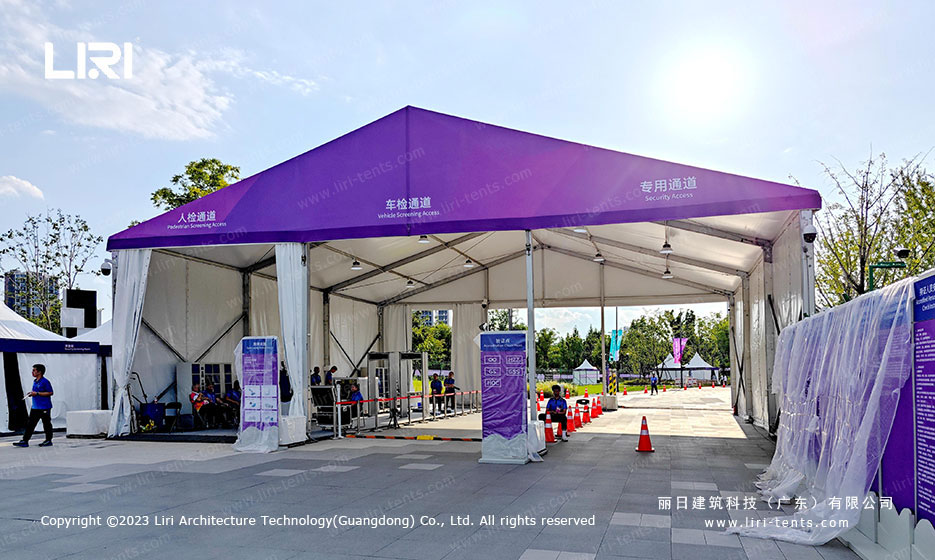

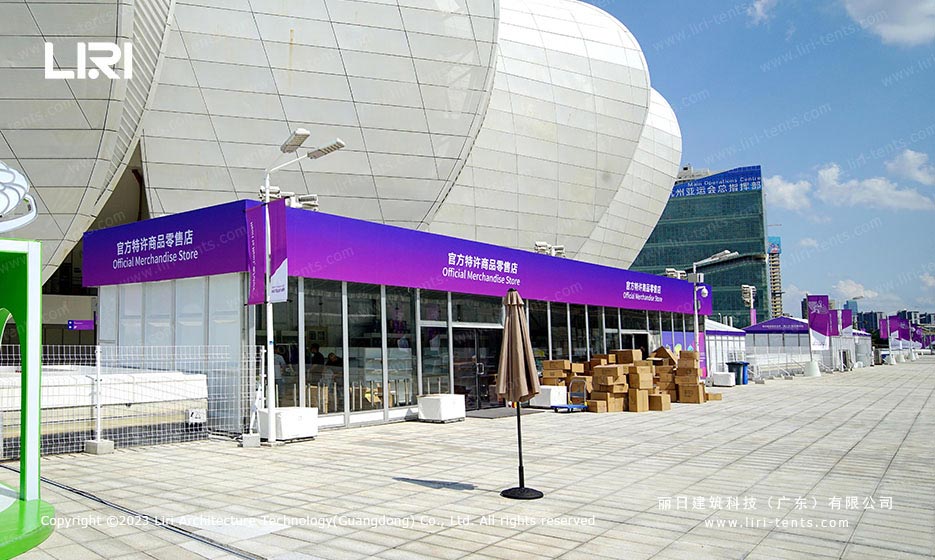

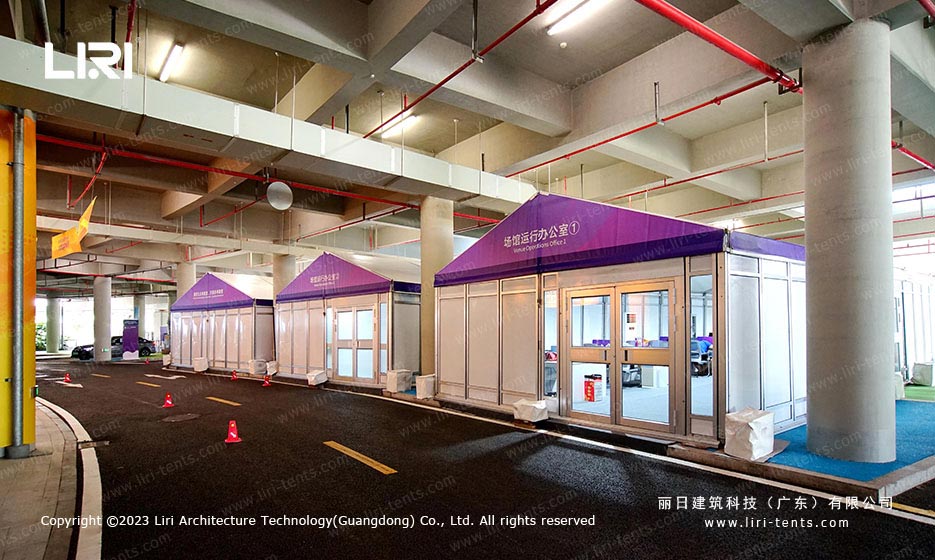

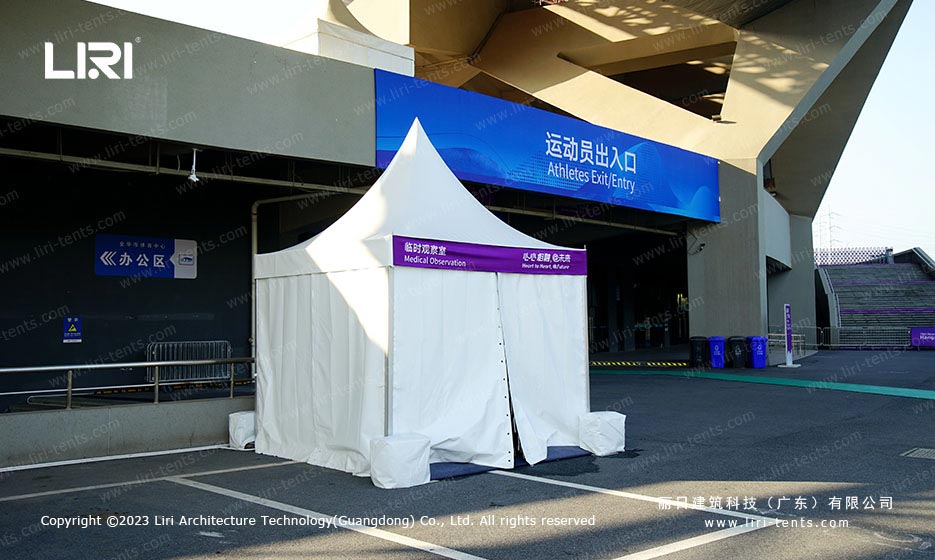

Liri Tent provided the 19th Asian Games with various sports event tents for different purposes, including security check, rest, dining, ticket sales, consultation, sponsor display area, service kiosk, medical point storage, TV relay station, volunteer rest area, etc., and equipped with water, electricity, gas, air conditioning, and other supporting systems.

In addition to the event tens, Liri also provided other supporting temporary facilities, including stages, security fences, temporary seats, camera platforms, barrier-free passages, steel structure bridges, toilets, temporary pipelines and power supply and distribution facilities, etc.

From the FISU to the Asian Games, the engineering technical team and service team of Liri Architecture Technology have been working silently. They will complete the construction of temporary tents for the Asian Games with high standards and high quality and wish the Asian Games a successful opening.

Especificações da Série de Tendas para Casamentos
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
8 m3,3 m4,53 m5 m152 x 119 x 3,5 mm (4 canais)
10 m3,3 m4,85 m5 m152 x 119 x 3,5 mm (4 canais)
10 m4 m5,55 m5 m152 x 119 x 3,5 mm (4 canais)
12 m3,3 m5,16 m5 m152 x 119 x 3,5 mm (4 canais)
12,5 m3,3 m5,29 m5 m152 x 119 x 3,5 mm (4 canais)
15 m3,3 m5,62 m5 m152 x 119 x 3,5 mm (4 canais)
15 m4 m6,32 m5 m152 x 119 x 3,5 mm (4 canais)
16 m3,3 m5,72 m5 m152 x 119 x 3,5 mm (4 canais)
18 m3,3 m6,01 m5 m152 x 119 x 3,5 mm (4 canais)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento de PVC; impermeável 100%; ignífugo de acordo com as normas DIN4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
