Longines Equestrian Tour China 2014 Horse Racing Tent

Outdoor Sports Event Tent for Horse Racing

Sobre o projeto

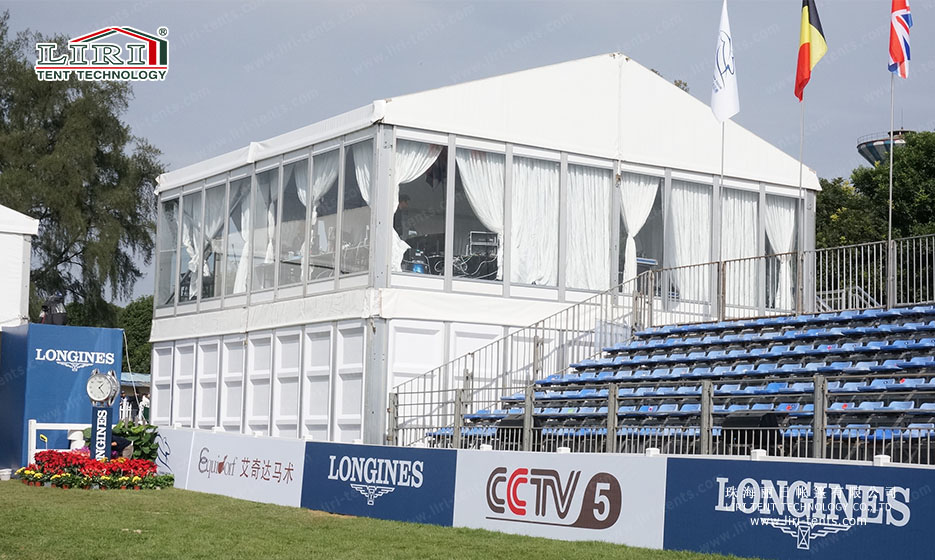

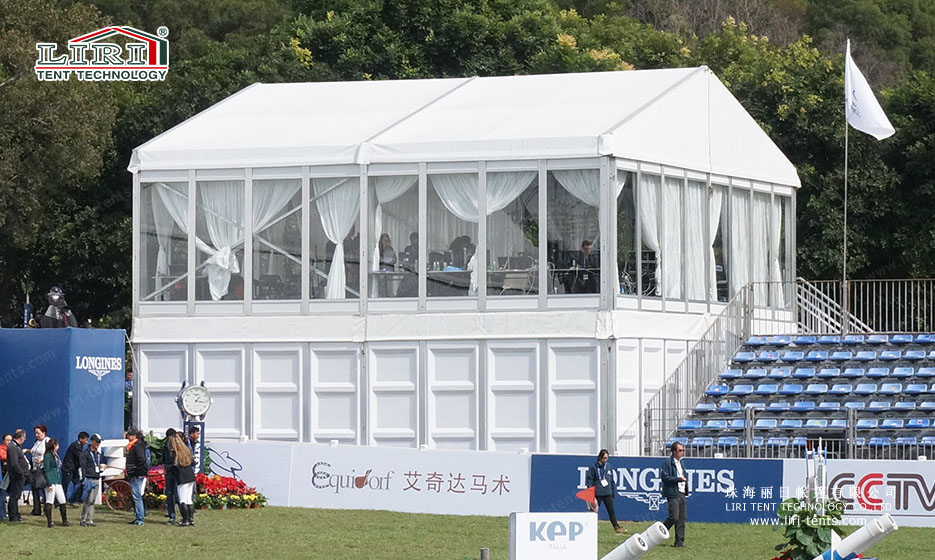

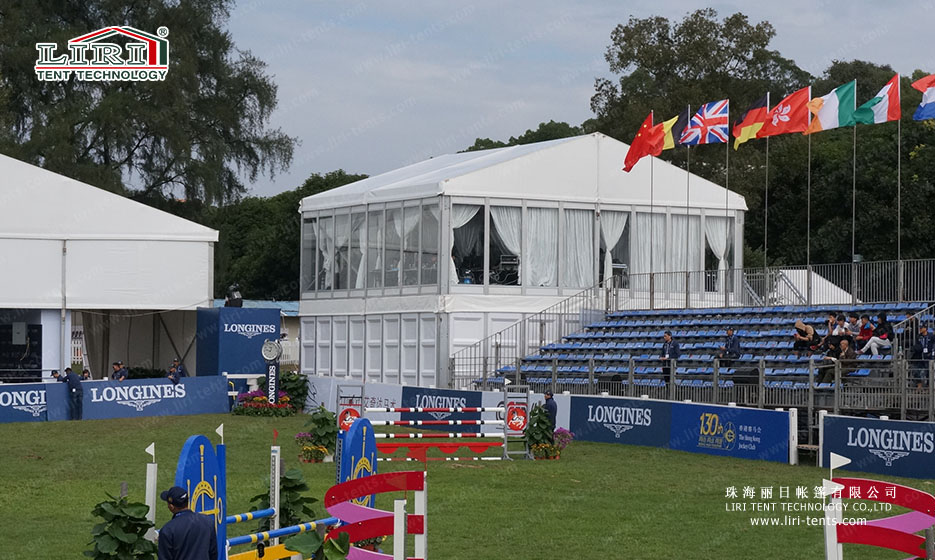

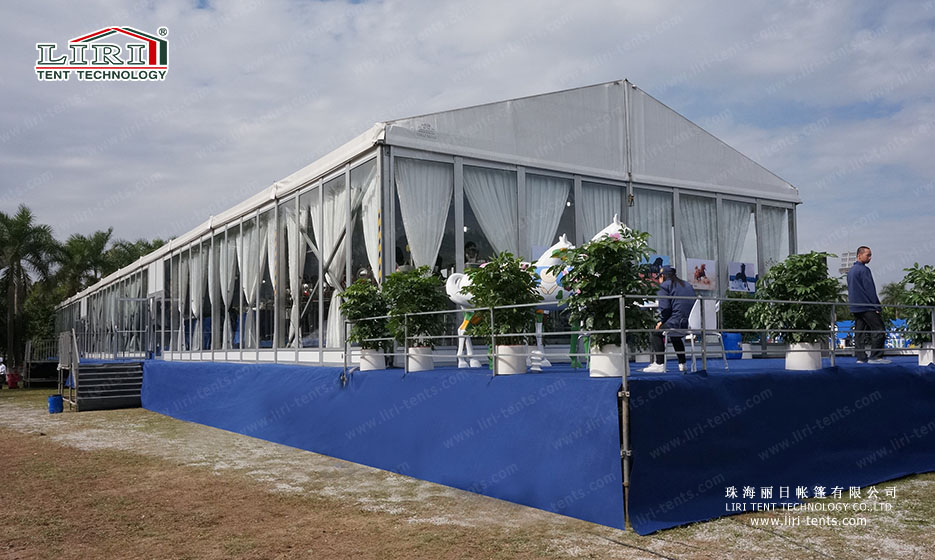

Liri provided a horse racing tent in the Tour 2014 Longines Hong Kong Jockey Club Cup Finals in Guangzhou.

Liri provides more than 10,000 square meters of horse racing tent for this event. Including catering for VIP tents, multi-function area polygon tents cover an area of two hundred percent use of race viewing and referees seats two-story tents, and high-end five-star hotel for horses accommodation – Equestrian Tent

Longines Equestrian Tour China 2014 (referred to as “Tour”), Guangzhou, Hong Kong Jockey Club Cup finals will be held on March 5 to 7 days. The event integrates athletics events, entertainment, culture, equestrian sports industry in one, which has been highly concerned about and widely recognized by the industry, and the media.

More Applications of Liri Tents in Equestrian Items
Especificações da série de tendas para eventos desportivos
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
10 m6,75 m8.50m5 m300 x 120 x 5 mm (4 canais)
15 m6,75 m9.34m5 m300 x 120 x 5 mm (4 canais)
20 m
6,75 m10.17m5 m300 x 120 x 5 mm (4 canais)
25 m6,75 m11m5 m300 x 120 x 5 mm (4 canais)
30 m6,75 m11.75m5 m300 x 120 x 5 mm (4 canais)
40 m6,75 m13.5m5 m300 x 120 x 5 mm (4 canais)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento em PVC; impermeável 100%; ignífugo de acordo com as normas DIN 4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
