Tendas de grandes dimensões para campos de basquetebol

Sobre o projeto

“Many people gather here every day and more crowded on weekend” This is what happens in basketball courts by LIRI. For the love of basketball, it seems never to fade. And more and more Large Tents for Basketball Courts have been set up and used in recent years.

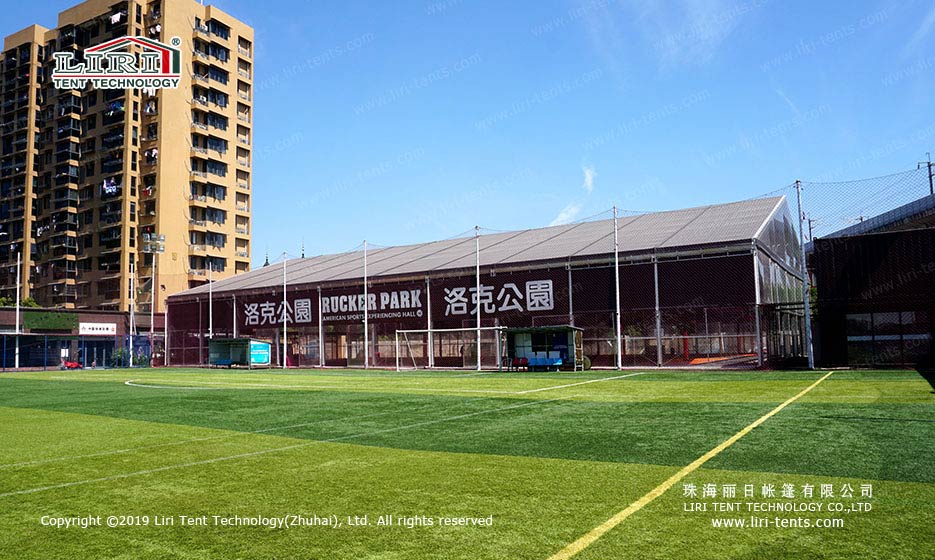

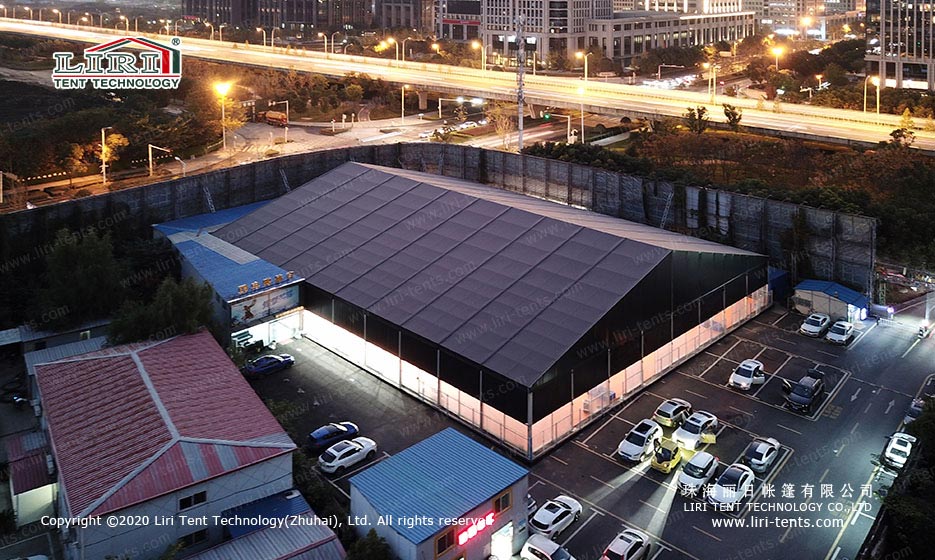

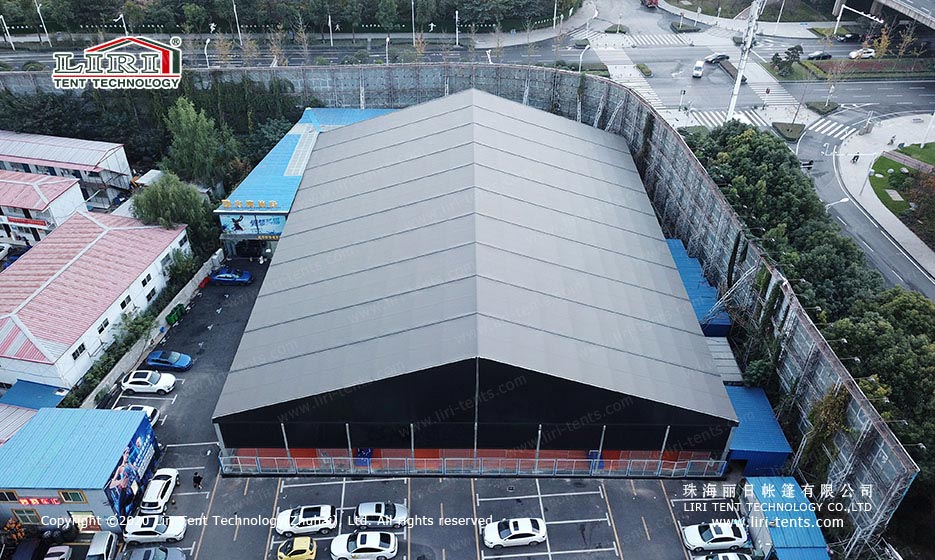

Located in the square, the Large Tents for Basketball we built is around by residential areas and stores. It needs a long time to build sports halls by permanent building and notice is avoid less. For our Large Tents of Basketball Courts are modular designs that can be delivered easily and no wasted materials, no noise, and excessive manpower during construction. Especially for the installation time, just several days can finish one large stadium.

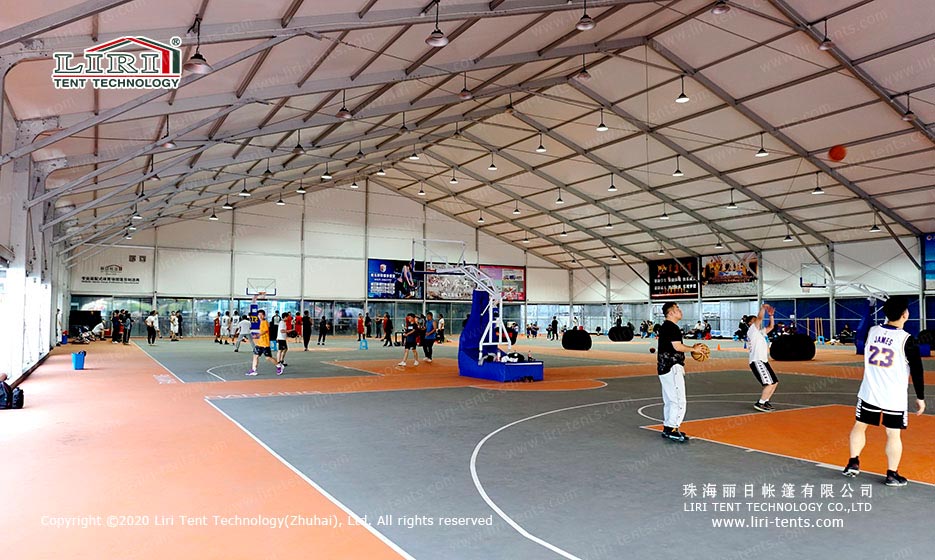

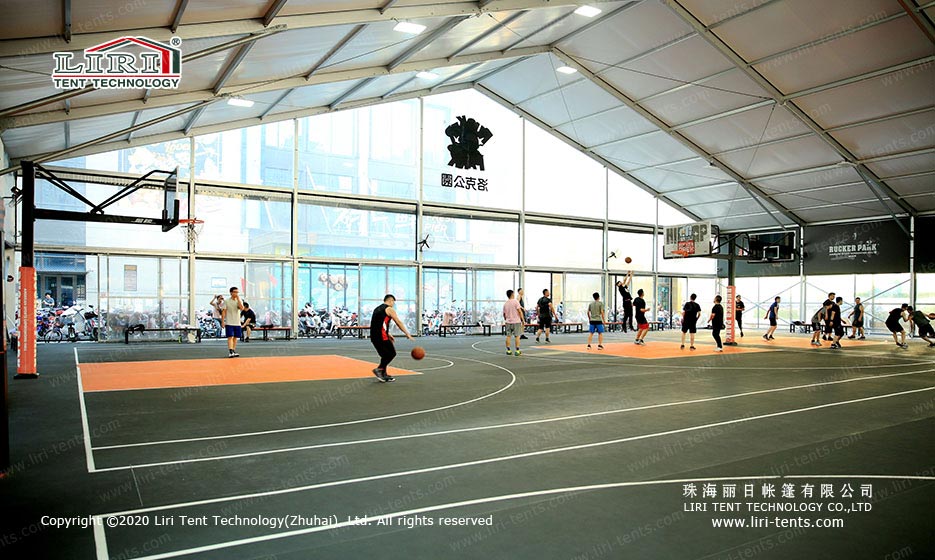

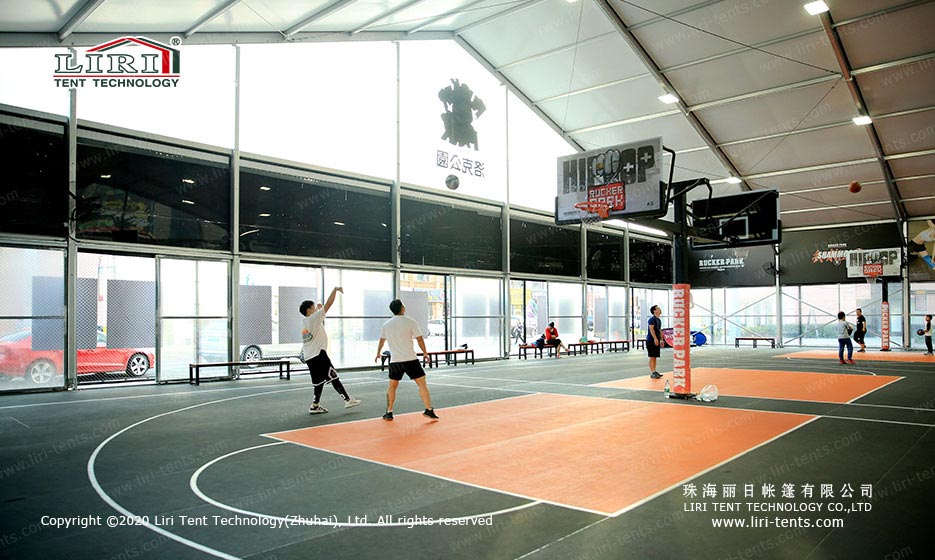

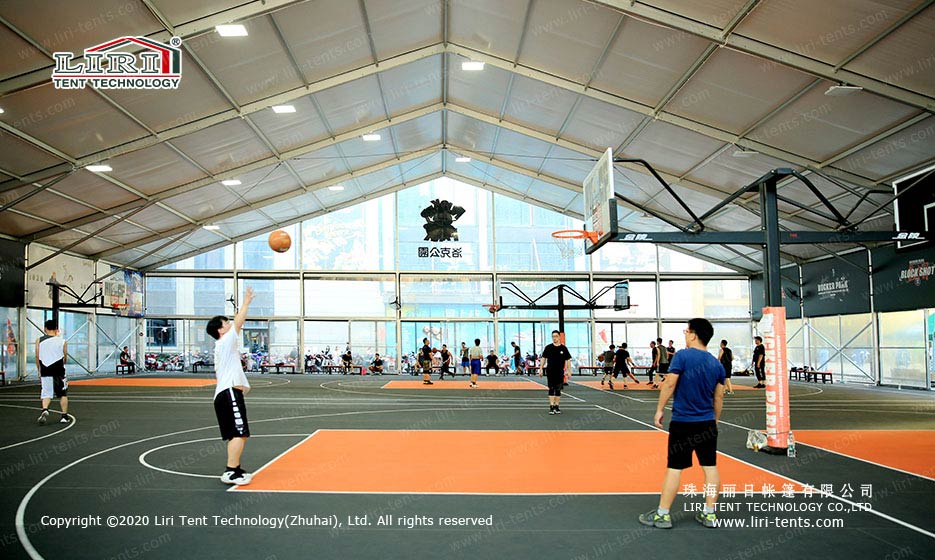

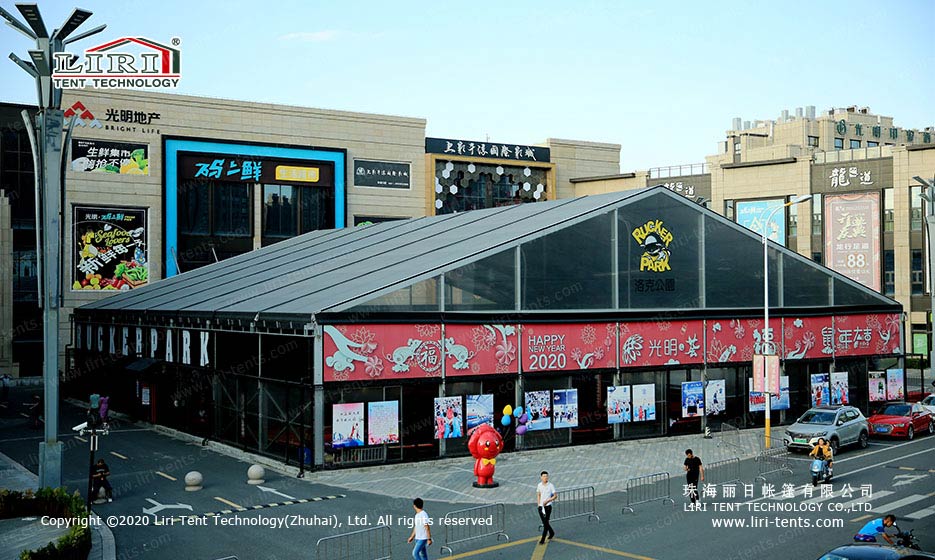

As you can see, with a brand LOGO on the black color roof cover, the Large Tents for Basketball Courts is full of street fashion. On the other hand, the transparent sidewall and sliding windows make the whole interior space much brighter without a lighting system during the day and good ventilation is also necessary. Hearing of jubilating and rhythmic basketball slap from the basketball court, it brings more vitality to the city.

The quantity of the stadium is far from enough for the people’s demand in the city. Large Tents for Basketball Courts which have great potential for interior sporting space use can be set up and copied to different cities in a short time. People do sports without worrying about the weather anymore.

Especificações da série de tendas para eventos desportivos
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
30 m4 m8,9 m5 m350 x 120 x 5 mm (4 canais)
40 m4 m10,5 m5 m350 x 120 x 5 mm (4 canais)
45 m4 m11,38 m5 m350 x 120 x 5 mm (4 canais)
50 m4 m12 m5 m350 x 120 x 5 mm (4 canais)
60 m4 m13,6 m5 m350 x 120 x 5 mm (4 canais)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento de PVC; impermeável 100%; ignífugo de acordo com as normas DIN4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
