Exhibition Tents for Airshow China 2021

2021 Zhuhai Airshow

Sobre o projeto

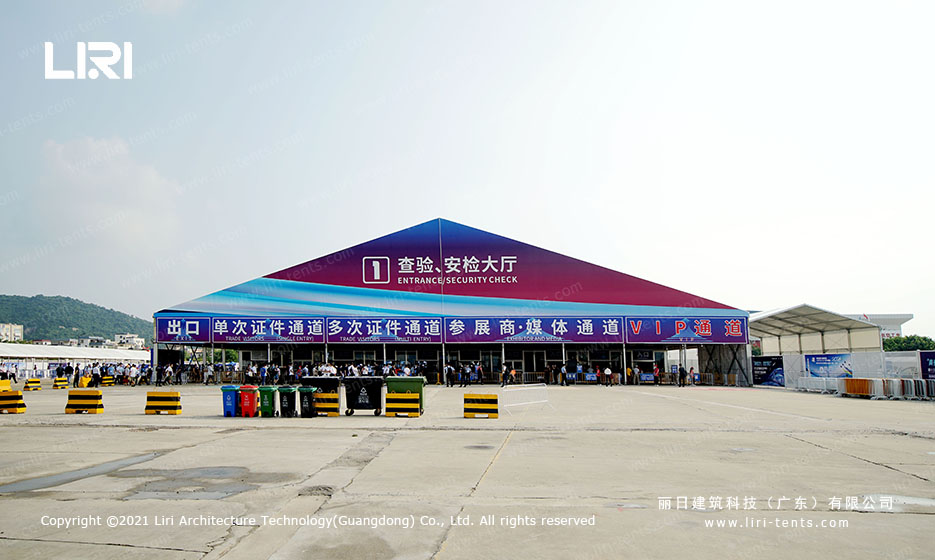

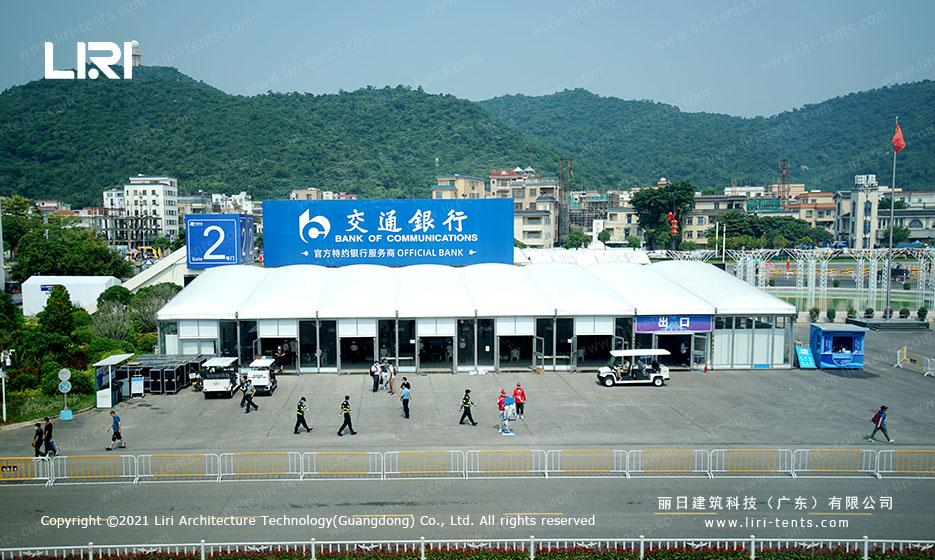

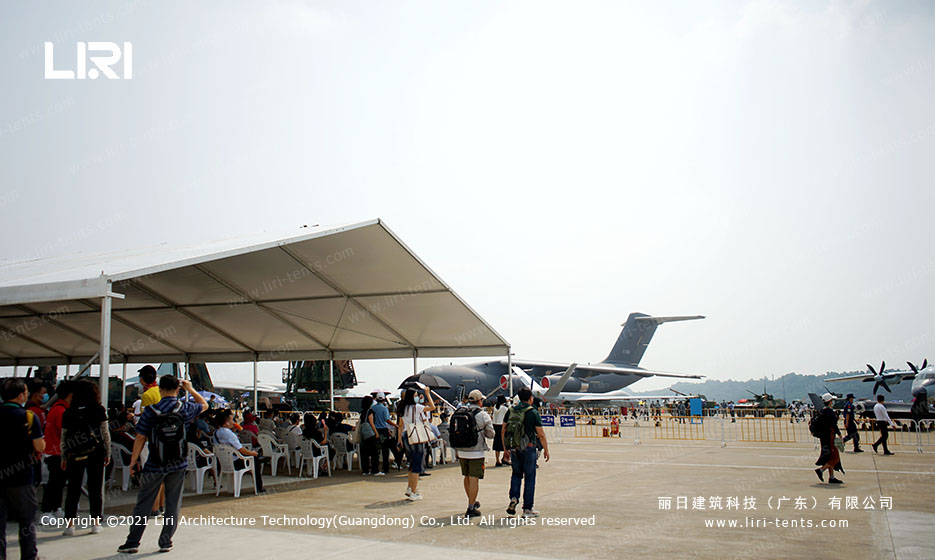

The 13th China International Aviation & Aerospace Exhibition 2021 (Zhuhai Airshow ) was held from September 28th to October 3rd, which is the largest airshow in China. LIRI Architecture, as for the local enterprise in Zhuhai, has been cooperated with China International Aviation & Aerospace Exhibition for 20 years and made cooperation again this year. LIRI provided Zhuhai Airshow with numerous temporary exhibition halls, these halls are bright and spacious inside with multifunctional areas.

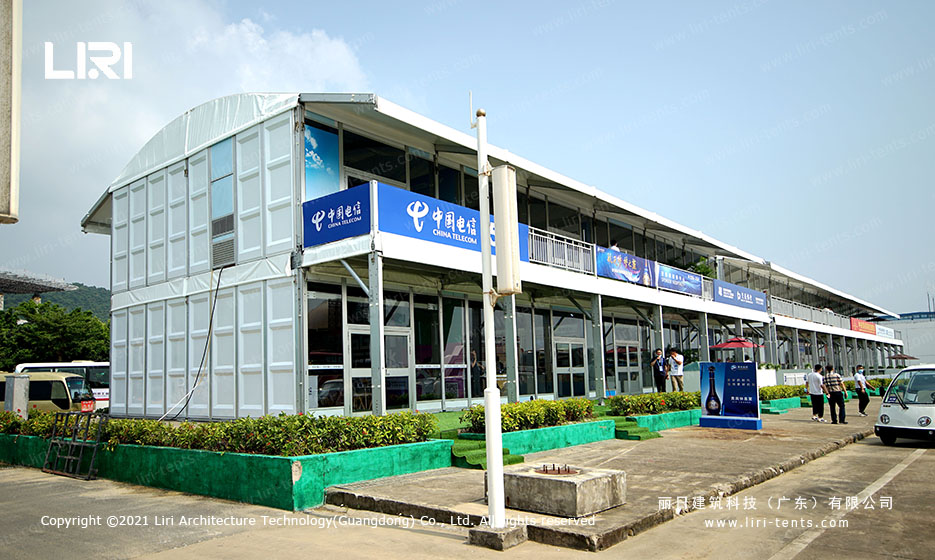

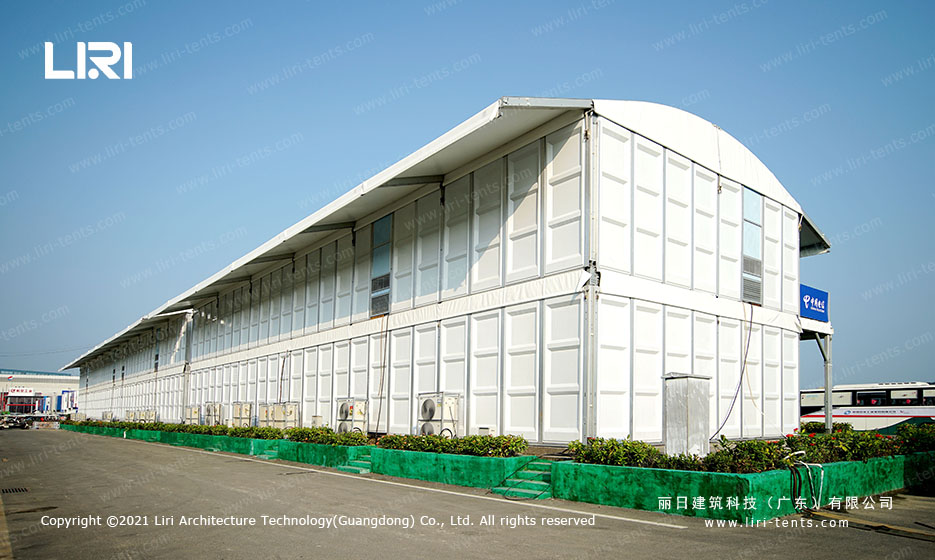

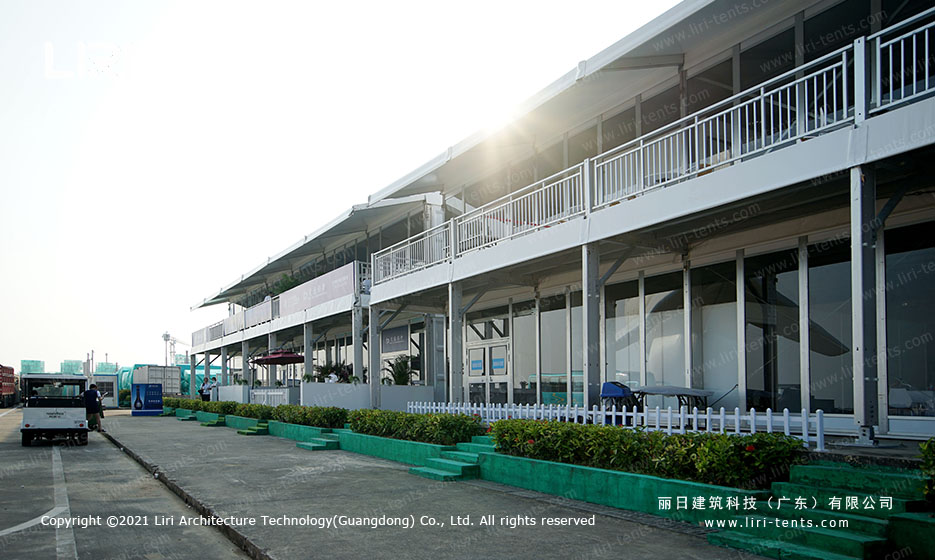

Arcum double decker tent, one of the temporary tents be used in Zhuhai airshow, whose design is tenda de dois andares structure, people can enjoy the view of the whole site by standing on the balcony. Besides, as a VIP lounge, people can enjoy both taking a rest and enjoying the scenery in the meantime. These temporary exhibitions from LIRI Architecture covered a total area of 35,000 square meters. In this airshow, LIRI provided various solutions that almost match each scene promptly.

The Zhuhai Airshow, in addition to expanding the scale, let people deeply feel the strength of our motherland and the future of science and technology. Spy drone, Unmanned ship, Tianwen 1 Mars Probe, Change 5 Lunar Probe, BeiDou-3 Navigation Satellite System, showed in this exhibition, were all amazed us. All of them in this show are integrated into the four-word, “Chinese Power”.

Especificações da série de tendas de exposição
Largura do vãoAltura lateralAltura da cumeeiraDistância entre módulosPerfil principal
10 m8 m8.54m5 m300 x 120 x 5 mm (4 canais)
15 m8 m8.89m5 m300 x 120 x 5 mm (4 canais)
20 m8 m9.2m5 m300 x 120 x 5 mm (4 canais)
25 m8 m9.5m5 m300 x 120 x 5 mm (4 canais)
30 m8 m9.8m5 m300 x 120 x 5 mm (4 canais)
40 m8 m10 m5 m300 x 120 x 5 mm (4 canais)
Características

Perfis da estrutura: alumínio extrudido 6061/T6 (15HW) de alta resistência

Revestimento em tecido: tecido de poliéster de alta qualidade com duplo revestimento de PVC; impermeável 100%; ignífugo de acordo com as normas DIN4102 B1, M2 e CFM; resistente aos raios UV, resistente ao rasgo, com capacidade de autolimpeza, etc.

Conectores: aço resistente galvanizado a quente

Faixa de temperatura admissível: de -30 °C a +70 °C

Resistência ao vento: máx. 100 km/h

Carga de neve: 75 kg/m² (a neve não se acumula com um telhado de grande inclinação)

Fácil de montar e desmontar

Sem postes no interior, 100% do espaço interno disponível
