Tenda grande em forma de cúpula de 60 m
- Informações gerais

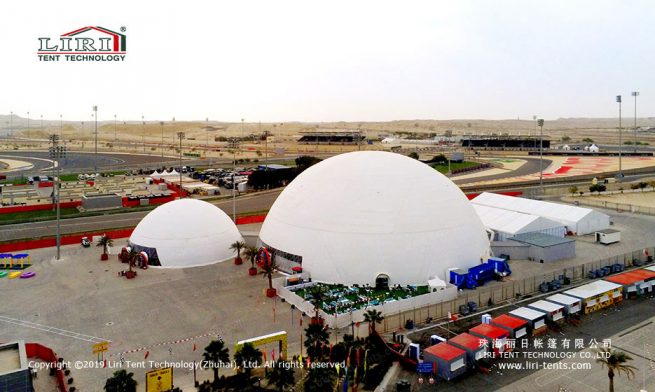

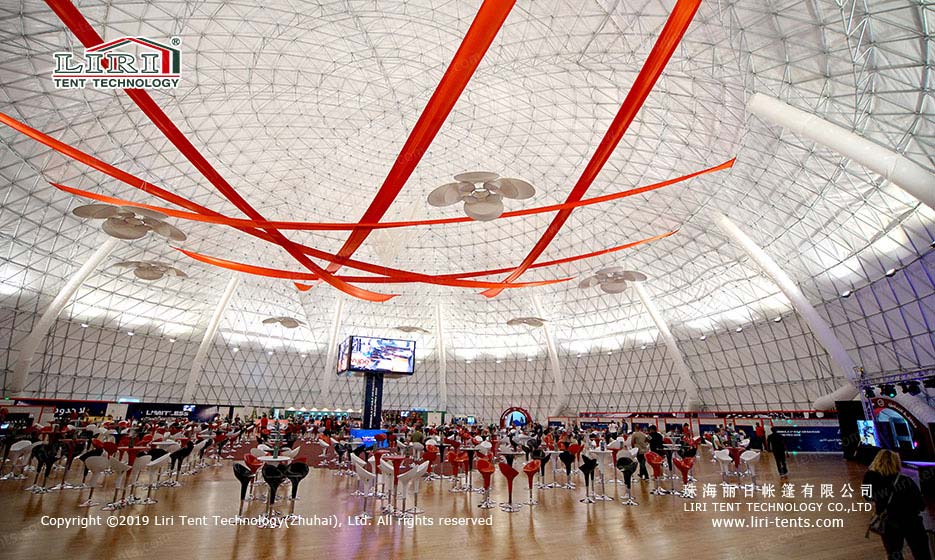

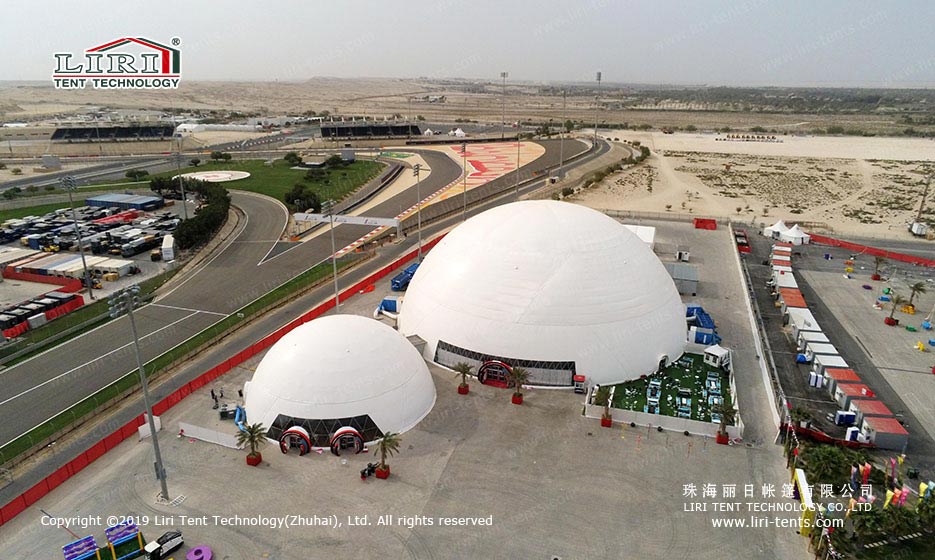

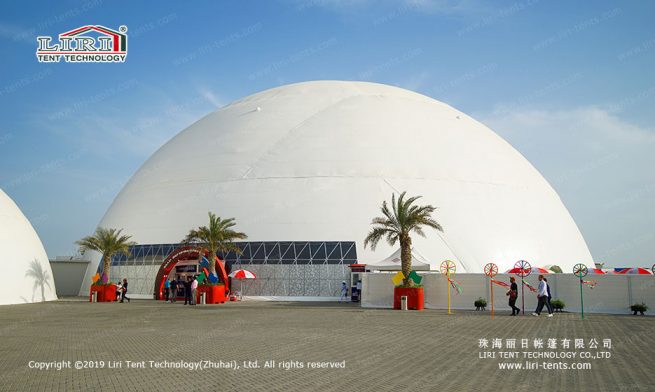

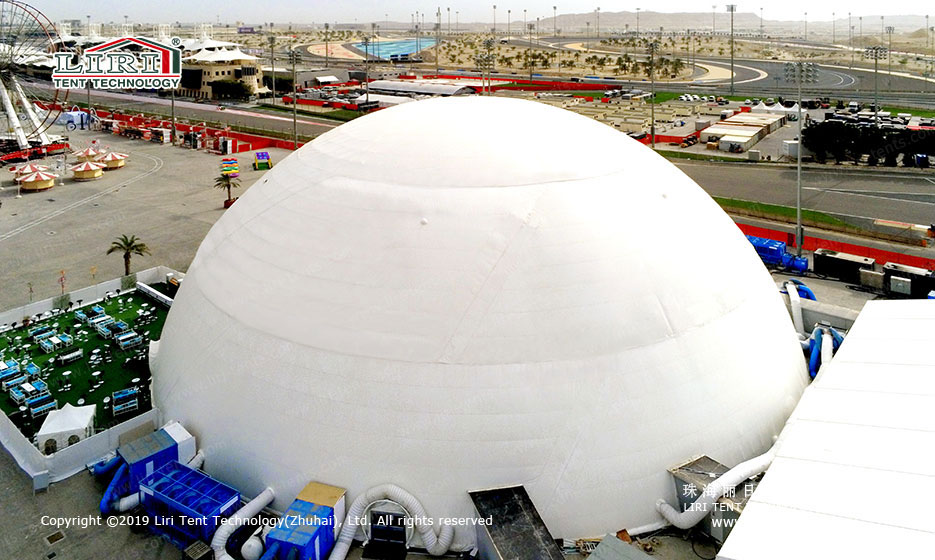

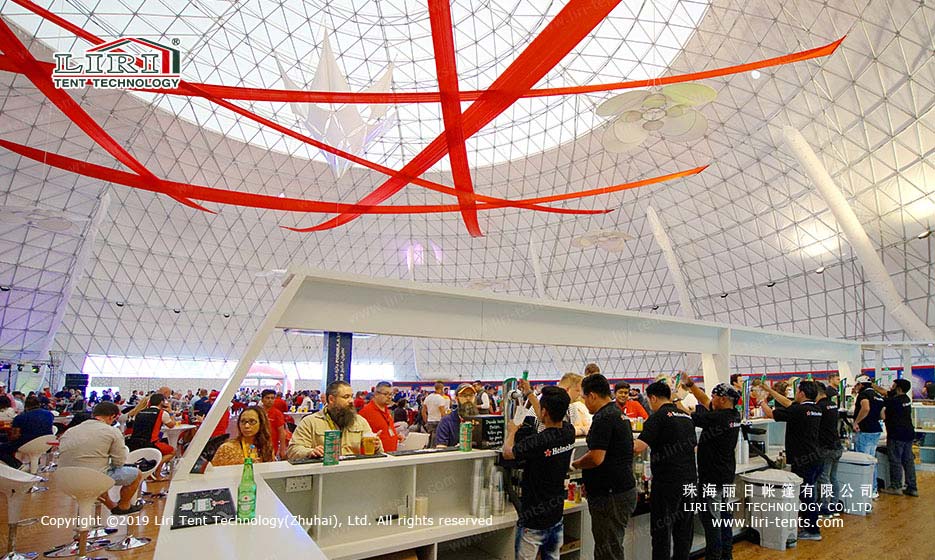

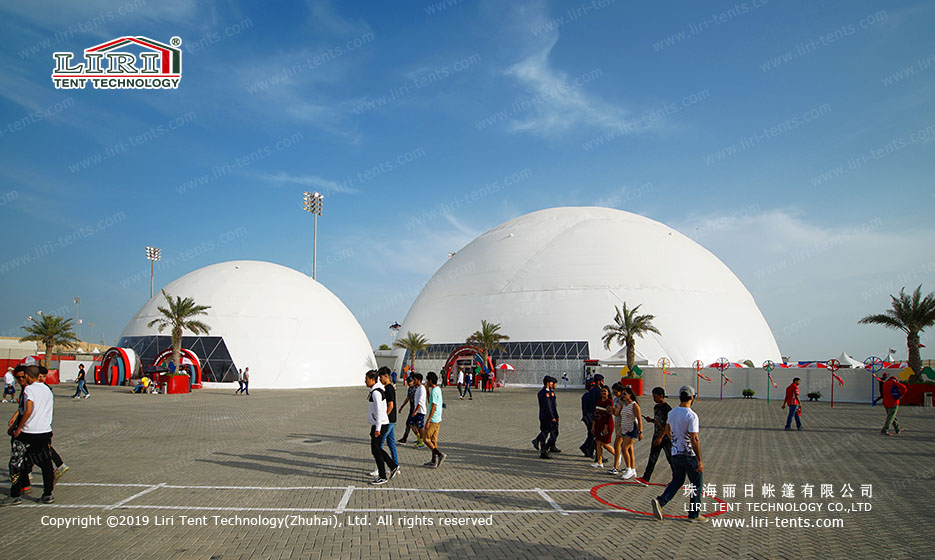

LIRI has always adhered to development and innovation of sphere dome tent. In order to make sure of the security of 60m large dome tent in the case of area expanding, we reinforce at each intersection of the tent frame. Tent frame is made of high strength steel tube shell structures, stress character is very strong, wind load is grade 10-12. It it durable that you can use it as a temporary building or semi-permanent building.
There is a variety of options of 60m large dome tent PVC fabric, such as normal white, translucent, transparent, and other color PVC cover. Its unique product design concept, modern and beautiful appearance and extremely wide using range, is very popular with event companies.
The PVC has waterproof, fire retardant and anti-aging function, the full transparent space will undoubtedly broaden their horizons, the interior scenery can be seen. At the same time, you can also print a variety of business activities pattern and information on the tent. All these not only improve the level of activities but also enhance commercial efficiency.In addition to 60m large dome tent, we also provide a variety of size from dia 3m-55m. Our flexible size can be customized according to the needs of our customers. There is no limit to the terraces construction. Without any poles inside the tent, it is 100% using space. Its using function is also quite extensive, a small sphere tent can be used as hotels, camps, restaurants; a large dome tent can be used for outdoor exhibitions, parties, festivals, weddings. Now sphere tent is an individual structure but also become high-end customers preferred.
- Especificações do produto
Diameter Ceiling Height Floor Area Volume Struts Details 3 m 2.3m
7.1m² 12.7m³ 20mm 4 m 2.89m 12.6m² 28m³ 20mm 5 m 2.93m 19.6m² 41m³ 20mm 6 m 3,52 m 28.3m² 70m³ 20mm 7m 4.1m 38.5m² 110m³ 26mm 8 m 4 m 50.2m² 134m³ 26mm 9 m 4.5m 63.6m² 191m³ 26mm 10 m 5 m 78.5m² 262m³ 26mm 11 m 5,5 m 95m² 348m³ 26mm 12 m 6 m 113m² 452m³ 33mm 13 m 5.82m 132.7m² 545m³ 33mm 14 m 6.27m 153.9m² 685m³ 33mm 15 m
6.72m 176.6m² 845m³ 33mm 16 m 7.16m 201m² 1030m³ 33mm 17m 8,5 m 226.9m² 1285m³ 33mm 18 m 9 m 254.3m² 1525m³ 33mm 19m 9,5 m 283.4m² 1795m³ 33mm 20 m 10 m 314m² 2090m³ 38mm 21 m 10,5 m 346.2m² 2420m³ 38mm 22m
11 m 379.9m² 2785m³ 38mm 23m 11,5 m 415.3m² 3180m³ 38mm 24m 12 m 452.2m² 3615m³ 38mm 25 m 12,5 m 490.6m² 4090m³ 48mm 30 m 13 m 706.5m² 5744m³ 48mm 35 m 14 m 961m² 8170m³ 48mm 40 m 15 m 1256m² 11191m³ 51mm 45 m 18 m 1589.6m² 17367m³ 48mm 50 m 20 m 1962.5m²
23823m³ 48mm 55 m 22m 2374.6m² 21710m³ 48mm 60 m 25 m 2826.0m² 43524m³ 51mm - Desenho 3D
